Gonçalo Velho 1933
Gonçalves Zarco 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Gonçalo Velho | 1956- F475 | Hawthorn Leslie, Tyne, UK | 10.1931 | 3.8.1932 | 5.1933 | BU 6.1961 | |
| Gonçalves Zarco | 1956- F476 | Hawthorn Leslie, Tyne, UK | 10.1931 | 28.11.1932 | 9.1933 | discarded 1969 |
|
Displacement standard, t |
950 |
|
Displacement full, t |
1414 |
|
Length, m |
76.2 pp 81.7 oa |
|
Breadth, m |
10.8 |
|
Draught, m |
3.43 |
|
No of shafts |
2 |
|
Machinery |
2 sets Parsons geared steam turbines, 2 Yarrow boilers |
|
Power, h. p. |
2000 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
oil 470 |
| Endurance, nm(kts) | 6000(10) |
|
Armament |
3 x 1 - 120/50 Vickers-Armstrong Mk G, 4 x 1 - 40/39 2pdr QF Mk II, 2 DCR |
|
Complement |
142 |
Project history: Small, but well armed colonial sloops. They were ordered in 1931 in Britain to Hawthorn Leslie. Project was developed on basis of British sloop Bridgewater from her Portuguese ship differed by increased hull beam, third 120mm gun and increased fuel stowage, but had no minesweeping equipment. Officially they were rated as 2nd class avisos.
Modernizations: 1943, both: - 4 x 1 - 40/39; + 5 x 1 - 20/70 Oerlikon Mk II/IV, 4 DCT, presumably sonar
1948, both: presumably + radar
Naval service: No significant events.

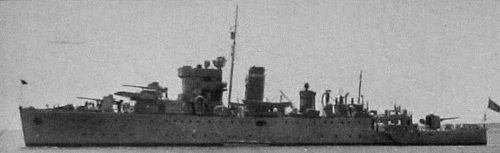

Gonçalves Zarco 1950
