Carvalho Araujo 1920
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Carvalho Araujo (ex-Jonquil) | Connell, Scotstoun, UK | 1915 | 12.5.1915 | 6.1915 // 5.1920 | survey vessel 1937 |
|
Displacement normal, t |
1200 |
|
Displacement full, t |
1275 |
|
Length, m |
76.2 pp 80.0 oa |
|
Breadth, m |
10.1 |
|
Draught, m |
3.40 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 2 cylindrical boilers |
|
Power, h. p. |
1800 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
coal 375 |
|
Endurance, nm(kts) |
5000(15) |
|
Armament |
2 x 1 - 102/40 QF Mk IV, 2 x 1 - 76/40 12pdr 12cwt QF Mk I/II, 4 x 1 - 47/40 3pdr Hotchkiss Mk I, 2 DCT |
|
Complement |
137 |
Project history: Former British Flower class sloop built in days of WWI, bought by Portugal in 1920 and rearmed. Rated as 2nd class aviso.
Modernizations: None.
Naval service: Charvalho Araujo in 1937 was converted to survey vessel and served till 1959.

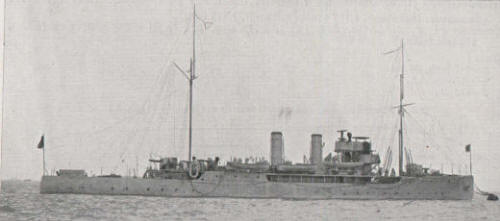

Carvalho Araujo 1933
