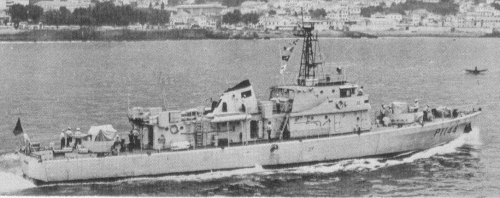

Cacine 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cacine | P1140 | Arsenal do Alfeite | 1968 | 5.1969 | stricken 7.2017 | ||
| Cunene | P1141 | Arsenal do Alfeite | 1968 | 6.1969 | stricken 2002 | ||
| Mandovi | P1142 | Arsenal do Alfeite | 1968 | 1969 | discarded 1998 | ||
| Rovuma | P1143 | Arsenal do Alfeite | 1968 | 1969 | discarded 2000 | ||
| Cuanza | P1144 | EN do Mondego | 30.5.1969 | 5.1969 | stricken 2018 | ||
| Geba | P1145 | EN do Mondego | 21.5.1969 | 5.1970 | discarded 2003 | ||
| Zaire | P1146 | EN do Mondego | 28.11.1970 | 11.1970 | stricken 2019 | ||
| Zambeze | P1147 | EN do Mondego | 1971 | 1.1971 | stricken 2004 | ||
| Limpopo | P1160 | Arsenal do Alfeite | 9.4.1973 | 4.1973 | stricken 2004 | ||
| Save | P1161 | Arsenal do Alfeite | 24.10.1972 | 5.1973 | stricken 2010 |
|
Displacement standard, t |
293 |
|
Displacement full, t |
310 |
|
Length, m |
44.0 |
|
Breadth, m |
7.67 |
|
Draught, m |
2.20 |
|
No of shafts |
2 |
|
Machinery |
2 Maybach 12V528 diesels |
|
Power, h. p. |
4400 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4400(12) |
|
Armament |
2 x 1 - 40/60 Mk 7, 1 x 32 - 37 RL, 2 DCR |
|
Electronic equipment |
Kelvin Hughes 975 radar |
| Complement | 33 |
Project history: Replacing of old PC and Le Fougeux classes.
Modernizations: 1992-1994, all: diesels were replaced by two MTU 12V538 TB80 with same power; - 1 x 1 - 40/60, 1 x 32 - 37 RL, 2 DCR, Kelvin Hughes 975 radar; + 1 x 1 - 20/70 Mk 4, type 1007 radar, 2 RIB
early 2010s, all survived: - 1 x 1 - 40/60
Naval service: No significant events.
Cuanza 1979

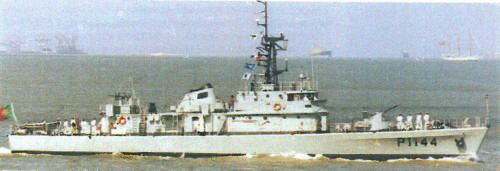

Cuanza 1998
