Baptista de Andrade 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Baptista de Andrade | F486 | Bazán, Cartagena, Spain | 1.9.1972 | 13.3.1973 | 19.11.1974 | stricken 2017 | |
| João Roby | F487 | Bazán, Cartagena, Spain | 1.12.1972 | 3.6.1973 | 18.3.1975 | stricken 2017 | |
| Afonso Cerqueira | F488 | Bazán, Cartagena, Spain | 10.3.1973 | 6.10.1973 | 26.6.1975 | stricken 3.2015 | |
| Oliveira e Carmo | F489 | Bazán, Cartagena, Spain | 1.6.1973 | 22.2.1974 | 28.10.1975 | stricken 2003 |
|
Displacement standard, t |
1205 |
|
Displacement full, t |
1380 |
|
Length, m |
81.00 pp 84.6 oa |
|
Breadth, m |
10.3 |
|
Draught, m |
3.30 |
|
No of shafts |
2 |
|
Machinery |
2 OEW-Pielstick 12PC2 V400 diesels |
|
Power, h. p. |
10560 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5900(18) |
|
Armament |
1 x 1 - 100/55 Mle 68, 2 x 1 - 40/60 Mk 3, 2 x 3 - 324 Mk 32 TT, 1 DCR, helicopter deck for light helicopter |
| Electronic equipment | Decca TM626, AWS-2, Pollux radars, Panda e/o system, Diodon sonar |
|
Complement |
113 |
Project history: Baptista de Andrade class utilized the same hull and machinery as the João Coutinho, but had a more sophistical armament and sensors. They had a helicopter platform but no hangar and landing aid equipment. Very poor armament and equipment dictated employment of these ships only in patrol and fisheries protection roles.
Modernizations: 1999-2003, all: - 2 x 3 - 324 TT, 1 DCR, Decca TM626, AWS-2, Pollux radars, Diodon sonar; + Decca RM316P, Kelvin-Hughes 5000 Nucleus 2 radars
Naval service: No significant events.

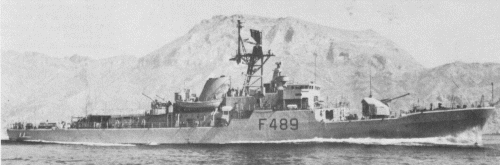

Oliveira e Carmo 1978

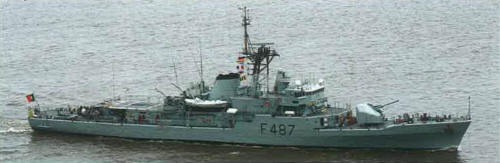

João Roby 2010
