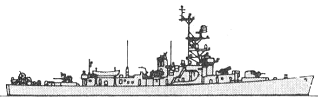

Almirante Gago Coutinho 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Almirante Pereira da Silva | F472 | Lisnave, Lisboa | 14.6.1962 | 2.12.1963 | 20.12.1966 | stricken 1989 | |
| Almirante Gago Coutinho | F473 | Lisnave, Lisboa | 2.12.1963 | 13.8.1965 | 29.11.1967 | stricken 1989 | |
| Almirante Magalhães Correia | F474 | ENVC, Viana do Castello | 30.8.1963 | 26.4.1965 | 4.11.1968 | stricken 1989 |
|
Displacement standard, t |
1314 |
|
Displacement full, t |
1877 |
|
Length, m |
93.9 wl 96.0 oa |
|
Breadth, m |
11.2 |
|
Draught, m |
3.60 |
|
No of shafts |
1 |
|
Machinery |
1 set De Laval geared steam turbines, 2 Foster Wheeler boilers |
|
Power, h. p. |
20000 |
|
Max speed, kts |
27 |
|
Fuel, t |
oil 400 |
| Endurance, nm(kts) | 6000(12) |
|
Armament |
2 x 2 - 76/50 Mk 33, 2 x 3 - 324 TT, 2 x 4 - 375 Bofors ASWRL |
|
Electronic equipment |
F472: MLA-1B, type 978, SPG-34, Decca RM316P radars, SQS-30, SQA-10A, DUBS-3A sonars F473: MLA-1B, type 978, SPG-34, Decca RM316P radars, SQS-31, SQA-10A, DUBS-3A sonars F474: MLA-1B, type 978, SPG-34, Decca RM316P radars, SQS-32, SQA-10A, DUBS-3A sonars |
|
Complement |
166 |
Project history: USN Dealy design with different armament and sensors. Built under MDAP.
Modernizations: None.
Naval service: No significant events.

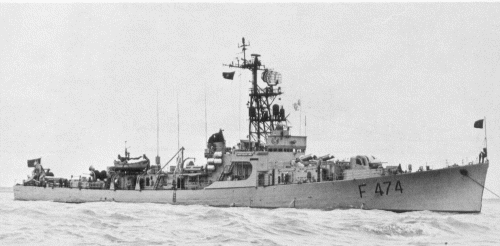

Almirante Magalhães Correia 1980
