São Gabriel 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| São Gabriel | Normand, Le Havre, France | 7.5.1898 | 1899 | discarded 1924 | |||
| São Rafael | Normand, Le Havre, France | 5.7.1898 | 1899 | wrecked 21.10.1911 |
|
Displacement normal, t |
1771 |
|
Displacement full, t |
|
|
Length, m |
73.8 pp 75.0 oa |
|
Breadth, m |
10.8 |
|
Draught, m |
4.34 max |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 Normand-Sigaudy boilers |
|
Power, h. p. |
4000 |
|
Max speed, kts |
17.5 |
|
Fuel, t |
coal 300 |
| Endurance, nm(kts) | 5000(10) |
| Armour, mm | deck: 20, CT: 60 |
|
Armament |
2 x 1 - 149/45 SC(tr)15/45, 4 x 1 - 120/45 SC(tr)12/45, 8 x 1 - 47/40 H(tr)47/40, 2 x 1 - 37/20 H(tr)37/20, 1 - 356 TT (bow) |
|
Complement |
242 |
Project history: Small cruisers for colonial service, actually seaworthy gunboats. In 1918 São Gabriel could make no more than 15kts.
Ship protection: 20mm main deck protected machinery. CT had 60mm sides.
Modernizations: None.
Naval service: Saõ Raphael wrecked in 21.10.1911 in mouth of river Ave.

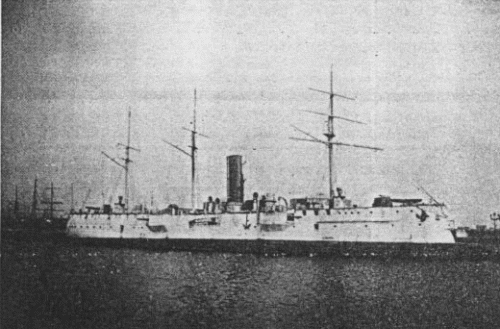

São Gabriel
