PORTUGUESE NAVY (PORTUGAL)

CRUISERS

ADAMASTOR unprotected cruiser (1897)

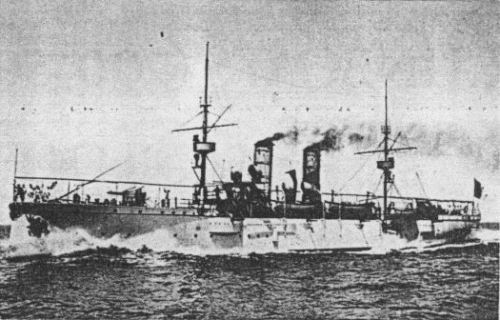

Adamastor 1900

Name No Yard No Builder Laid down Launched Comp Fate
Adamastor     Orlando, Livorno, Italy 1.1.1895 12.7.1896 3.8.1897 discarded 11.1933


Displacement normal, t

1729

Displacement full, t

1757

Length, m

74.0 pp

Breadth, m

10.7

Draught, m

4.65 max

No of shafts

2

Machinery

2 VTE, 4 cylindrical boilers

Power, h. p.

4000

Max speed, kts

18

Fuel, t

coal 420

Endurance, nm(kts) 4600(10)
Armour, mm deck: 30, CT: 65

Armament

2 x 1 - 149/27 K.15/30, 4 x 1 - 105/37 K.10.5/40, 4 x 1 - 65/40 H(tr)65/40, 2 x 1 - 37/25 H(tr)37/25, 3 - 356 TT (1 bow, 2 beam)

Complement

237

Project history: Actually large gunboat with armoured deck. Intended for colonial service.

Ship protection: 30mm main deck protected machinery. CT had 65mm sides.

Modernizations: 1922: - 2 x 1 - 149/27; + 2 x 1 - 120/44 A(tr)12/45

Naval service: No significant events.

Adamastor 1898
