Argos 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Lira | P361 | EN do Viana do Castelo | 6.1964 | to Angola 9.1975 | |||
| Orion | P362 | EN do Viana do Castelo | 10.1964 | to Angola 9.1975 | |||
| Argos | P372 | Arsenal do Alfeite | 6.1963 | to Angola 5.1975 | |||
| Cassiopeia | P373 | Arsenal do Alfeite | 1.1964 | stricken 9.1974 | |||
| Dragão | P374 | Arsenal do Alfeite | 7.1963 | to Angola 5.1975 | |||
| Escorpião | P375 | Arsenal do Alfeite | 8.1963 | to Angola 9.1975 | |||
| Hidra | P376 | Arsenal do Alfeite | 4.1964 | to Angola 5.1975 | |||
| Pegaso | P379 | Arsenal do Alfeite | 10.1963 | to Angola 10.1975 | |||
| Centauro | P1130 | EN do Viana do Castelo | 4.1965 | to Angola 9.1975 | |||
| Sagitário | P1131 | EN do Viana do Castelo | 9.1965 | stricken 9.1974 |
|
Displacement standard, t |
180 |
|
Displacement full, t |
210 |
|
Length, m |
40.0 pp 41.7 oa |
|
Breadth, m |
6.20 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
2 Maybach diesels |
|
Power, h. p. |
1200 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil 16 |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 40/60 Mk 3 |
| Electronic equipment | radar |
|
Complement |
24 |
Project history: Colonial patrol boats.
Modernizations: None.
Naval service: No significant events.

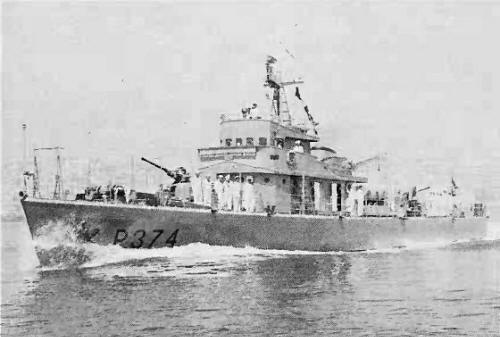

Dragão 1973
