Albatros 1946
|
Names |
L1 Altair (ex-ML...) L2 Belatrix (ex-ML...) L3 Canopus (ex-ML...) L4 Deneb (ex-ML...) L5 Espiga (ex-ML...) L6 Fomalhaut (ex-ML...) |
|
Builders |
UK: L1 Altair, L2 Belatrix, L3 Canopus, L4 Deneb, L5 Espiga, L6 Fomalhaut |
|
Completed |
1942 - 1944 // 1946: L1 Altair, L2 Belatrix, L3 Canopus, L4 Deneb, L5 Espiga, L6 Fomalhaut |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1951: L2 Belatrix 1955: L1 Altair 1959: L3 Canopus, L4 Deneb, L5 Espiga, L6 Fomalhaut |
|
Displacement standard, t |
75.5 |
|
Displacement full, t |
85.6 |
|
Length, m |
34.8 |
|
Breadth, m |
5.59 |
|
Draught, m |
1.45 deep load |
|
No of shafts |
2 |
|
Machinery |
2 Hall-Scott petrol engines |
|
Power, h. p. |
1200 |
|
Max speed, kts |
18 |
|
Fuel, t |
petrol 10500 l |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 47/40 Hotchkiss, 1 x 2 - 20/70 Oerlikon, 1 x 1 - 20/70 Oerlikon, 2 x 2 - 7.7/94, 2 DCT (6), 14 DC or 8 - 9 mines |
|
Electronic equipment |
type 291U or type 293 radar, type 134 sonar |
|
Complement |
16 |
Project history: Fairmile B type motor launches, purchased from Royal Navy.
Modernizations: None.
Naval service: In early 1950s all survived launches were converted to rescue duty.

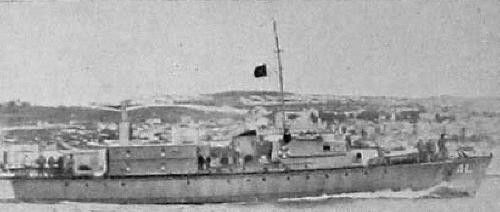

Altair 1949
