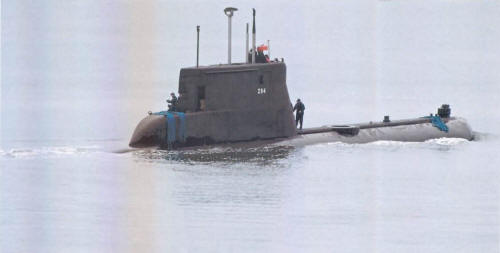

Sokól 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sokól (ex-Stord) | 294 | 364 | Rheinstahl-Nordseewerke, Emden, West Germany | 1.4.1966 | 2.9.1966 | 14.2.1967 // 25.5.2002 | stricken 6.2018 |
| Sęp (ex-Skolpen) | 295 | 362 | Rheinstahl-Nordseewerke, Emden, West Germany | 1.11.1965 | 24.3.1966 | 17.8.1966 // 5.8.2002 | in service (2019) |
| Bielik (ex-Svenner) | 296 | 365 | Rheinstahl-Nordseewerke, Emden, West Germany | 8.9.1966 | 27.1.1967 | 12.6.1967 // 24.10.2003 | in service (2019) |
| Kondor (ex-Kunna) | 297 | 354 | Rheinstahl-Nordseewerke, Emden, West Germany | 3.3.1964 | 16.7.1964 | 29.10.1964 // 20.10.2004 | stricken 12.2017 |
|
Displacement standard, t |
|
|
Displacement normal, t |
294, 295, 297: 460 / 524 296: 472 / 538 |
|
Length, m |
294, 295, 297: 47.4 296: 48.4 |
|
Breadth, m |
4.60 |
|
Draught, m |
4.58 |
|
No of shafts |
1 |
|
Machinery |
2 MTU 12V493 AZ80 GA31L diesel-generators, 1 electric motor |
|
Power, h. p. |
1200 / 1800 |
|
Max speed, kts |
13.5 / 17 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(8) (snorkel) / 141(6) |
|
Armament |
8 - 533 TT (bow, 8 Tp612, NT37, DM-2A3) |
|
Electronic equipment |
type 1007 radar, DBQS-21F (CSU-83) sonar suite, Phoenix ECM suite, MSI90U CCS |
|
Complement |
21 |
|
Diving depth operational, m |
200 |
Project history: Former Norwegian Kobben class (German type 207) submarines. Ex-Svenner was used for training duties and has lengthened hull. Sister-boat Kobben was also transferred in July 2002 as a stationary training platform under the name Jastrzab. After modernization in 1988-1992 these submarines received new MSI90U CCS, modified for launch DM-2A3 torpedoes, but these torpedoes were not transferred to Poland.
Modernizations: None.
Naval service: No significant events.
Sokól 2007
Many thanks to Wolfgang Stöhr for additional information on this page.
