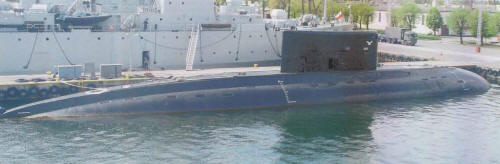

Orzeł 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Orzeł (ex-B-351) | 291 | 603 | Krasnoye Sormovo, Gorkiy, USSR | 29.9.1984 | 7.6.1985 | 29.11.1985 // 29.4.1986 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
2325 / 3075 |
|
Length, m |
72.6 |
|
Breadth, m |
9.90 hull 12.8 max |
|
Draught, m |
6.60 |
|
No of shafts |
1 |
|
Machinery |
2 4DL-42M diesel-generators, 1 PG-141 electric motor / 1 PG-142 electric motor for crouching |
|
Power, h. p. |
4080 / 5500 / 150 |
|
Max speed, kts |
10.7 / 18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
6880(7) / 400(3) |
|
Armament |
6 - 533 TT (bow, 18 or 24 mines), 1 x 8 Igla-1 SAM (8 9M313) |
|
Electronic equipment |
MRK-50E Kaskad radar, MGK-400E Rubikon-E sonar suite, MG-519E Arfa-E, MG-512 Vint, MG-53, MG-553 Shkert sonars, MRP-25E ECM suite, MVU-110 Uzel CCS |
|
Complement |
60 |
|
Diving depth operational, m |
240 |
Project history: Specially built for export Soviet Project 877E, lead ship. Formally submarine was at first commissioned by Soviet Navy and later transferred to the Poland. Planned three additional submarines were never transferred due to financial problem, two project 641 submarines were transferred instead.
Modernizations: None.
Naval service: No significant events.
Orzeł 2007
Many thanks to Wolfgang Stöhr for additional information on this page.
