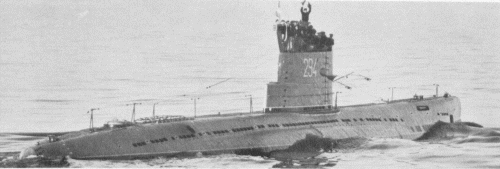

Orzeł 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Orzeł (ex-S-265) | 292 | 611 | 112 Zhdanov Yd, Gorkiy, USSR | 27.7.1954 | 30.11.1954 | 30.7.1955 // 29.11.1962 | stricken 12.1983 |
| Sokół (ex-S-278) | 293 | 914 | 112 Zhdanov Yd, Gorkiy, USSR | 9.12.1954 | 19.4.1955 | 12.11.1955 // 1964 | stricken 12.1987 |
| Kondor (ex-S-355) | 294 | 55 | 189 Ordzhonikidze Yd, Leningrad, USSR | 28.7.1954 | 30.6.1955 | 12.11.1955 // 10.6.1965 | stricken 9.1988 |
| Bielik (ex-S-279) | 295 | 915 | 112 Zhdanov Yd, Gorkiy, USSR | 20.12.1954 | 23.4.1955 | 20.11.1955 // 1.7.1965 | stricken 10.1985 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1045 / 1342 |
|
Length, m |
76.0 |
|
Breadth, m |
6.30 |
|
Draught, m |
4.55 |
|
No of shafts |
2 |
|
Machinery |
2 37D diesels / 2 PG-101 electric motors |
|
Power, h. p. |
4000 / 2700 |
|
Max speed, kts |
18.3 / 13.1 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8580(10) / 353(2) |
|
Armament |
6 - 533 TT (4 bow, 2 stern, 12 or 22 mines) |
|
Electronic equipment |
Flag radar, Plutoniy, Feniks sonars, Nakat ECM suite |
|
Complement |
55 |
|
Diving depth operational, m |
170 |
Project history: Former Soviet project 613 medium submarines.
Modernizations: None.
Naval service: No significant events.
Kondor 1972
Many thanks to Wolfgang Stöhr for additional information on this page.
