Lublin 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Lublin | 821 | Stocnia Północną, Gdansk | 12.7.1988 | 12.10.1989 | in service (2019) | ||
| Gniezno | 822 | Stocnia Północną, Gdansk | 7.12.1988 | 23.2.1990 | in service (2019) | ||
| Kraków | 823 | Stocnia Północną, Gdansk | 7.3.1989 | 27.6.1990 | in service (2019) | ||
| Poznań | 824 | Stocnia Północną, Gdansk | 5.1.1990 | 8.3.1991 | in service (2019) | ||
| Toruń | 825 | Stocnia Północną, Gdansk | 8.6.1990 | 24.5.1991 | in service (2019) |
|
Displacement standard, t |
1350 |
|
Displacement full, t |
1745 |
|
Length, m |
81.0 pp 95.8 oa |
|
Breadth, m |
10.8 |
|
Draught, m |
2.40 |
|
No of shafts |
3 |
|
Machinery |
3 Cegielski-Sulzer 6ATL25D diesels |
|
Power, h. p. |
5390 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1400(16) |
|
Armament |
4 x (2 Strela-2M SAM + 2 - 23/87) ZU-23-2MR Wrobel-2MR (24 Strela-2M), 9x 100/5000 Sonata elongated explosive charges for beach clearing, 134 mines instead of tanks |
|
Military load |
821-823: 9 tanks or 17 trucks, 80 troops 824, 825: 9 tanks or 17 trucks, 135 troops |
|
Electronic equipment |
821-823: SRN-7453, SRN-443XTA radars, Jastrzab decoy RL 824, 825: SRN-7453, SRN-443XTA radars, 2x Derkacz decoy RL |
|
Complement |
37 |
Project history: Project 767. Officially classed as transport/minelaying ships, they were built as replacement for projects 770/771 classes. Ro-Ro type ferry design with a continuous, open hold deck, spanned by superstructure, fitted with 20m bow ramp with folding end and aft ramp. 600m² parking area for vehicles. Planned building of sixth ship was cancelled.
Modernizations: 2010s, all: - SRN-7453, SRN-443XTA radars; + 2x Sperry radars
Naval service: No significant events.

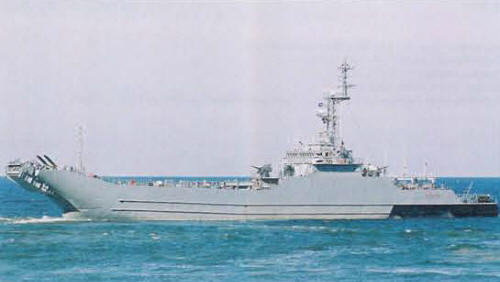

Gniezno 2008
© Ivan Gogin, 2018-19
