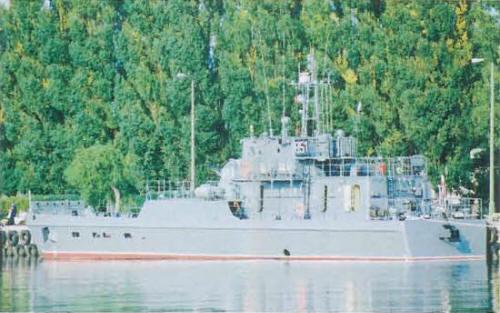

KD-11 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| KD-11 | 851 | Stocznia Marynarki Wojennej, Gdynia | 16.6.1988 | in service (2019) | |||
| KD-12 | 852 | Stocznia Marynarki Wojennej, Gdynia | 15.10.1990 | in service (2019) | |||
| KD-13 | 853 | Stocznia Marynarki Wojennej, Gdynia | 31.1.1991 | in service (2019) | |||
| KD-14 | Stocznia Marynarki Wojennej, Gdynia | --- | cancelled 1990 |
|
Displacement standard, t |
|
|
Displacement full, t |
176 |
|
Length, m |
33.6 wl 37.2 oa |
|
Breadth, m |
7.27 |
|
Draught, m |
1.67 |
|
No of shafts |
3 |
|
Machinery |
3 M-401A diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil 9 |
|
Endurance, nm(kts) |
500(16) |
|
Armament |
1 x 2 - 23/87 ZU-23-2 Wrobel-1, 2x PW-LWO line-charge RL, mines instead of cargo |
|
Military load |
50 troops, 20 t cargo or 3 vehicles |
|
Electronic equipment |
SRN-207A radar |
|
Complement |
12 |
Project history: Project 716, replacement for project 709. Previously planned class of 12 was reduced to four, of which only three were completed.
Modernizations: 2010s, all: - SRN-207A radar; + Sperry radar
Naval service: No significant events.
KD-11 2003
