Kaszub 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Kaszub | 240 | Stocznia Polnocna, Gdansk | 11.5.1985 | 4.10.1986 | 3.3.1987 | Board Guard 1990-1/1991, in service (2019) |
|
Displacement standard, t |
1050 |
|
Displacement full, t |
1185 |
|
Length, m |
77.8 pp 82.3 oa |
|
Breadth, m |
10.0 |
|
Draught, m |
4.90 |
|
No of shafts |
2 |
|
Machinery |
4 Cegielski-Sulzer AS16V25/30 diesels |
|
Power, h. p. |
16900 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3500(14) |
|
Armament |
2 x 4 Fasta-RM SAM (16 9M32M Strela-2M), 3 x 2 - 23/87 ZU-23-2M Wrobel-I, 2 x 2 - 533 TT (4 SET-53M), 2 x 12 RBU-6000 ASWRL, 2 DCR (12), 4 - 20 mines |
|
Electronic equipment |
Don, MR-302 Rubka radars, MG-322T Argun', MG-329M Shelon' sonars, Bizan'-4B ECM suite, 2x PK-10 decoy RL |
|
Complement |
78 |
Project history: Polish project 620, based on the Soviet project 1124 but with diesels instead of gas turbines. Planned serious building of 7 ships was cancelled due to technical problems. Planned installation of twin 57mm gun and Osa SAM was abandoned due to stability and vibration problems.
Modernizations: 9.1991: + 1 x 1 - 76/59 AK-176
2000: - Don radar, Bizan'-4B ECM suite, 2x PK-10 decoy RL; + SRN-741XT, SRN-7453 Nogat radars, Jastrzab-2 decoy RL, 2x Derkacz-2 decoy RL
2016: - 1 x 2 - 23/87; + 1 x 2 - 35/90 AM-35 Tryton, ZGS-15M e/o system
Naval service: No significant events.

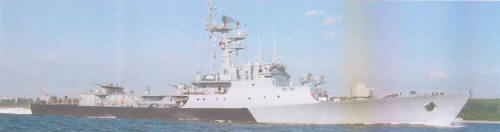

Kaszub 2006
Many thanks to Piotr Zbies for adding and correcting the information on this page.
