Grunwald 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Grunwald | 811 | Stocnia Północną, Gdansk | 5.11.1971 | 16.9.1972 | 21.4.1973 | stricken 3.2005 |
|
Displacement standard, t |
1233 |
|
Displacement full, t |
1314 |
|
Length, m |
76.0 pp 81.3 oa |
|
Breadth, m |
9.30 |
|
Draught, m |
1.20 fwd 2.60 aft |
|
No of shafts |
2 |
|
Machinery |
2 40DM diesels |
|
Power, h. p. |
4400 |
|
Max speed, kts |
16.3 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2600(12) |
|
Armament |
2 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18M RL |
|
Military load |
1 APC or 2 light trucks, 54 troops and command staff |
|
Electronic equipment |
Donets-2, MR-104 Rys' radars |
|
Complement |
45 |
Project history: Project 776 (variation of built for USSR project 773), built mainly as command ship for landing operations. Short vehicle deck aft can accommodate only one 15t APC or 2 light trucks.
Modernizations: 1980s: + 2 x 4 Fasta-4M SAM (16 Strela-3M)
1990s: - Donets-2 radar; + SRN-207, SRN-433XTA, SRN-7453 Nogat radars
Naval service: No significant events.

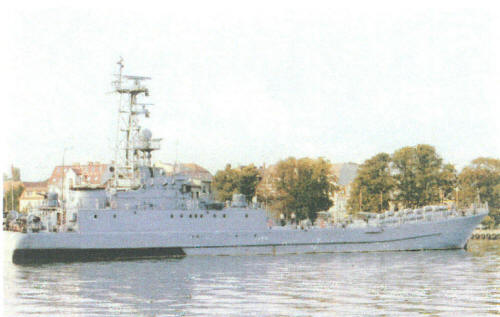

Grunwald 2003
