Generał Kazimierz Pułaski 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Generał Kazimierz Pułaski (ex-Clark) | 272 | 374 | General Dynamics Bath Iron Works, USA | 17.7.1978 | 24.3.1979 | 9.5.1980 // 15.3.2000 | in service (2019) |
| Generał Tadeusz Kościuszko (ex-Wadsworth) | 273 | 125 | Todd, San Pedro, USA | 13.7.1977 | 29.7.1978 | 28.2.1980 // 28.6.2002 | in service (2019) |
|
Displacement standard, t |
3100 |
|
Displacement full, t |
3658 |
|
Length, m |
125.9 wl 135.6 oa |
|
Breadth, m |
13.7 |
|
Draught, m |
5.80 mean 6.70 max |
|
No of shafts |
1 |
|
Machinery |
2 General Electric LM-2500 gas turbines |
|
Power, h. p. |
41000 |
|
Max speed, kts |
29 |
|
Fuel, t |
gas turbine oil 587 |
| Endurance, nm(kts) | 4200(20) |
|
Armament |
1 x 1 Harpoon SSM / Standard SM-1MR SAM (4 RGM-84 + 36 RIM-66), 1 x 1 - 76/62 Mk 75, 1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT (A244, MU90), 2 helicopters (SH-2G Super Seasprite) |
|
Electronic equipment |
272: Furuno, SPS-55, SPS-49(V)4, Mk 92 Mod. 2, SPG-60, Mk 90 radars, SQQ-89(V)2 sonar suite (SQS-56 hull-mounted sonar + SQR-19(V)2 towed array), SLQ-32(V)2 ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy 273: Furuno, SPS-55, SPS-49(V)4, Mk 92 Mod. 2, SPG-60, Mk 90 radars, SQQ-89(V)9 sonar suite (SQS-56 hull-mounted sonar + SQR-19(V)9 towed array), SLQ-32(V)2 ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy |
|
Complement |
217 |
Project history: Former USN Oliver H. Perry class frigates.
Modernizations: None.
Naval service: No significant events.

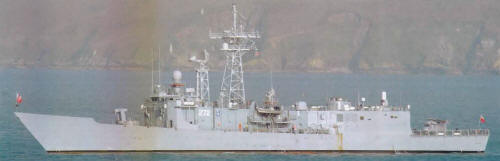

Generał Kazimierz Pułaski 2008
Many thanks to Wolfgang Stöhr for additional information on this page.
