Warszawa 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Warszawa (ex-Smelyy) | 56 | 1711 | 61 Kommunar Yd, Nikolayev, USSR | 15.11.1966 | 6.2.1968 | 27.12.1969 // 9.1.1988 | stricken 12.2003 |
|
Displacement standard, t |
3550 |
|
Displacement full, t |
4510 |
|
Length, m |
144.0 |
|
Breadth, m |
15.8 |
|
Draught, m |
4.57 |
|
No of shafts |
2 |
|
Machinery |
2 M-3E gas turbine units |
|
Power, h. p. |
72000 |
|
Max speed, kts |
35.5 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
3500(18) |
|
Armament |
4 x 1 Termit SSM (4 P-15M(4K51)), 2 x 2 M-1 Volna-M SAM (32 V-601(4K91)), 2 x 2 - 76/59 AK-726, 2 x 1 - 45/69 21KM, 4 x 6 - 30/54 AK-630M, 1 x 5 - 533TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 14 - 22 mines, helicopter deck |
|
Electronic equipment |
MR-500 Kliver, NYR-27, 2x SRN-7453 Nogat, SRN-207, 2x Yatagan II, 2x MR-105 Turel', 2x MR-123 Vympel radars, MGK-335 Platina, MG-409P, MG-7 sonars, MI-110KM wake detector, Krab-11, Krab-12, MP-401 Start, Bizan'-4B, MRP-15-16 Zaliv ECM suites, 4x PK-16, 4x PK-10 decoy RL, Planshet-61 CCS |
|
Complement |
266 |
Project history: Former Soviet project 61MP large ASW ship. Served as fleet flagship.
Modernizations: None.
Naval service: No significant events.

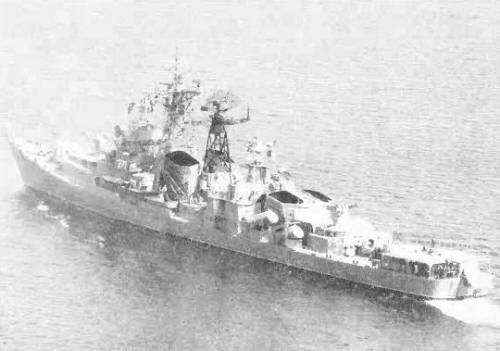

Warszawa 1988
