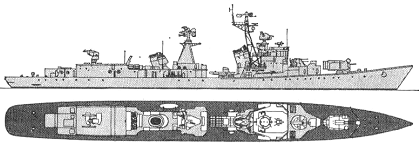

Warszawa 1970
Warszawa 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Warszawa (ex-Spravedlivy) | 275 | 709 | 190 Zhdanov Yd, Leningrad, USSR | 25.12.1954 | 12.4.1956 | 20.12.1956 // 25.6.1970 | stricken 1.1986 |
|
Displacement standard, t |
3060 |
|
Displacement full, t |
3620 |
|
Length, m |
126.1 |
|
Breadth, m |
12.8 |
|
Draught, m |
4.50 |
|
No of shafts |
2 |
|
Machinery |
2 TV-8 geared steam turbines sets, 4 KV-76 boilers |
|
Power, h. p. |
72000 |
|
Max speed, kts |
34.5 |
|
Fuel, t |
oil |
|
Endurance, nm(kts) |
2150(17) |
|
Armament |
1 x 2 M-1 Volna SAM (16 V-600(4K90)), 1 x 2 - 130/58 SM-2-1, 1 x 4 - 45/89 SM-20-ZIF, 2 x 1 - 45/69 21KM, 1 x 5 - 533 TT, 2 x 16 RBU-2500 Smerch ASWRL |
|
Electronic equipment |
MR-300 Angara, Yakor'-M1, 4R-90 Yatagan, Fut-B, Zaria, 2x Don radars, Gerkules-2M sonar, Machta-P4 ECM suite |
|
Complement |
268 |
Project history: Former Soviet project 56AE destroyer.
Modernizations: None.
Naval service: No significant events.

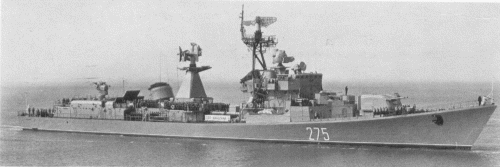

Warszawa 1975
