POLISH NAVY (POLAND)

BOARD GUARD SHIPS AND CRAFT

OP-205 board guard ships (project 902, 1959 - 1960)

Neptun 1970

Name No Yard No Builder Laid down Launched Comp Fate
OP-205, 5.1967- Neptun 1/1960- 311   Stocznia Marynarki Wojennej, Gdynia 7/1958 23.12.1958 8/1959 stricken 12.1983
OP-206, 5.1967- Saturn 1/1960- 312   Stocznia Marynarki Wojennej, Gdynia 10/1958 21.4.1959 11/1959 stricken 12.1985
OP-207, 5.1967- Pegaz 1/1960- 313   Stocznia Marynarki Wojennej, Gdynia 1/1959 18.9.1959 12/1959 stricken 12.1983
OP-208, 5.1967- Orion 1/1960- 314   Stocznia Marynarki Wojennej, Gdynia 4/1959 31.10.1959 9/1960 stricken 12.1984
OP-209, 5.1967- Kastor 1/1960- 315   Stocznia Marynarki Wojennej, Gdynia 9/1959 31.12.1959 9/1960 stricken 12.1985
OP-210, 5.1967- Cirus 1/1960- 316   Stocznia Marynarki Wojennej, Gdynia 11/1959 15.3.1960 11/1960 stricken 12.1984
OP-211, 5.1967- Jupiter 1/1960- 317   Stocznia Marynarki Wojennej, Gdynia 2/1960 5.5.1960 11/1960 stricken 12.1986
OP-212, 5.1967- Wega 1/1960- 318   Stocznia Marynarki Wojennej, Gdynia 4/1960 16.7.1960 12/1960 stricken 12.1986
OP-213, 5.1967- Minor 1/1960- 319   Stocznia Marynarki Wojennej, Gdynia 6/1960 30.9.1960 12/1960 stricken 12.1985



Displacement standard, t

170

Displacement full, t

193

Length, m

39.0

Breadth, m

5.90

Draught, m

1.70

No of shafts

2

Machinery

2 6KVD-43 diesels

Power, h. p.

2400

Max speed, kts

19

Fuel, t

diesel oil

Endurance, nm(kts) 1000(10)

Armament

2 x 1 - 37/73 70K, 2 x 2 - 12.7/79, 2 DCR

Electronic equipment Zarnitsa radar, Tamir-10 sonar

Complement

33

Project history: Development of previous design.

Modernizations: 1971-1975, all: - Zarnitsa radar; + SRN-231 radar

Naval service: No significant events.

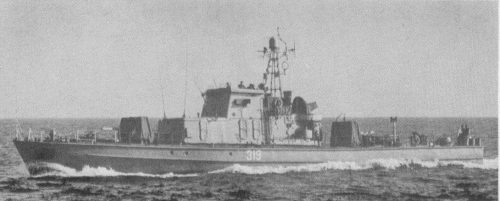

Minor 1970
