Orkan 2000
Orkan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Orkan | 421 | 390 // 660/1 | Peenewerft, Wolgast, East Germany // Stocznia Polnocna, Gdansk | 13.9.1989 | 7.7.1990 | 18.9.1992 | in service (2019) |
| Piorun | 422 | 391 // 660/2 | Peenewerft, Wolgast, East Germany // Stocznia Polnocna, Gdansk | 10.7.1990 | 19.10.1990 | 13.3.1994 | in service (2019) |
| Grom (ex-Huragan) | 423 | 392 // 660/3 | Peenewerft, Wolgast, East Germany // Stocznia Polnocna, Gdansk | 18.9.1989 | 11.12.1990 | 28.4.1995 | in service (2019) |
|
Displacement standard, t |
331 |
|
Displacement full, t |
396 |
|
Length, m |
45.0 pp 48.9 oa |
|
Breadth, m |
8.65 |
|
Draught, m |
2.15 |
|
No of shafts |
3 |
|
Machinery |
3 M-520 diesels |
|
Power, h. p. |
16200 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1600(18) |
|
Armament |
1 x 4 FAM-14 SAM (8 9M32M Strela-2M), 1 x 1 - 76/59 AK-176, 1 x 6 - 30/54 AK-630M |
|
Sensors |
NUR-27XA, SRN-443, MR-123 Vympel-AME radars, PK-32 Jastrzab, 8x PK-12 Derkacz-2 decoy RL |
|
Complement |
36 |
Project history: Former East German project 151A craft, purchased incomplete without engines and armament prior the unification of Germany. Completed for Polish navy as project 660 instead of cancelled indigenous project 665.
Modernizations: 2003, Piorun; 2005, Grom; 2007, Orkan: - NUR-27XA, SRN-443, MR-123 Vympel-AME radars, + 4 x 2 RBS-15 Mk 2 SSM (8 RBS-15 Mk 2), Sea Giraffe AMB 3D, CRM-200, Sting-EO radars, Bren ECM suite, TACTICOS CCS
2011-2012, all: - 4 x 2 RBS-15 Mk 2 SSM; + 4 x 2 RBS-15 Mk 3 SSM (8 RBS-15 Mk 3)
Naval service: No significant events.

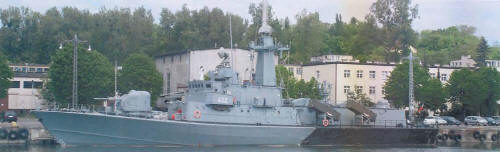

Piorun 2008
Many thanks to Wolfgang Stöhr for additional information on this page.
