KT-83 1960
|
Names |
401 KT-83 402 KT-84 403 KT-85 404 KT-86 405 KT-87 406 KT-88 407 KT-89 408 KT-90 409 KT-71 410 KT-72 411 KT-73 412 KT-74 413 KT-75 414 KT-76 415 KT-77 416 KT-78 417 KT-79 418 KT-80 419 KT-91 420 KT-92 |
|
Builders |
5 Yd, Leningrad, USSR: KT-71-80, 83-92 |
|
Completed |
// 1956: KT-83-87 // 1957: KT-88-90 // 1958: KT-71-80, 91, 92 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1966: KT-88 1967: KT-83, 84, 86, 87 1968: KT-76, 85, 89 1969: KT-72, 77 1970: KT-74, 75, 80, 90 1971: KT-71, 73, 78, 79, 91, 92 |
|
Displacement standard, t |
57 |
|
Displacement full, t |
67 |
|
Length, m |
25.5 |
|
Breadth, m |
6.18 |
|
Draught, m |
1.24 |
|
No of shafts |
4 |
|
Machinery |
4 M-50FTK diesels |
|
Power, h. p. |
6000 |
|
Max speed, kts |
43 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(14) |
|
Armament |
2 x 2 - 25/112 2M-3M, 2 x 1 - 533 TT or 18 mines, 8 DC |
|
Sensors |
Zarnitsa radar |
|
Complement |
14 |
Project history: Soviet project 183 boats.
Modernizations: None.
Naval service: No significant events.

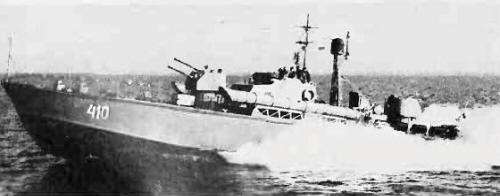

KT-72 1971
