Hel 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Hel | 161, 1970- 421 | 421 | Primorskiy Yd, Leningrad, USSR | // 1.1964 | stricken 12.1984 | ||
| Gdańsk | 162, 1970- 422 | 422 | Primorskiy Yd, Leningrad, USSR | // 9.1964 | stricken 2.1989 | ||
| Gdynia | 163, 1970- 423 | 423 | Primorskiy Yd, Leningrad, USSR | // 9.1965 | stricken 11.1989 | ||
| Kołobrzeg | 164, 1970- 424 | 424 | Primorskiy Yd, Leningrad, USSR | // 11.1965 | stricken 6.1993 | ||
| Szczecin | 165, 1970- 425, 9.1991- SG302 | 425 | Primorskiy Yd, Leningrad, USSR | // 1.1966 | Coast Guard 6.1990, stricken 1995 | ||
| Elbląg | 166, 1970- 426, 9.1991- SG303 | 426 | Primorskiy Yd, Leningrad, USSR | // 9.1966 | Coast Guard 6.1990, stricken 1995 | ||
| Puck | 167, 1970- 427 | 427 | Primorskiy Yd, Leningrad, USSR | // 10.1967 | stricken 2.2003 | ||
| Ustka | 168, 1970- 428 | 428 | Primorskiy Yd, Leningrad, USSR | // 9.1968 | stricken 10.2000 | ||
| Oksywie | 429 | 429 | Primorskiy Yd, Leningrad, USSR | // 12.1971 | stricken 10.2000 | ||
| Darłowo | 430 | 430 | Primorskiy Yd, Leningrad, USSR | // 1.1972 | stricken 2.2003 | ||
| Świnoujście | 431 | 431 | Primorskiy Yd, Leningrad, USSR | // 1.1973 | stricken 3.2006 | ||
| Dziwnów | 432 | 432 | Primorskiy Yd, Leningrad, USSR | // 1.1975 | stricken 6.2004 | ||
| Władysławowo | 433 | 433 | Primorskiy Yd, Leningrad, USSR | // 11.1975 | stricken 3.2006 |
|
Displacement standard, t |
184 |
|
Displacement full, t |
226 |
|
Length, m |
38.6 |
|
Breadth, m |
7.60 |
|
Draught, m |
1.84 |
|
No of shafts |
3 |
|
Machinery |
3 M-504B diesels |
|
Power, h. p. |
15000 |
|
Max speed, kts |
42 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(14) |
|
Armament |
4 x 1 P-15/P-15T SSM (4 P-15/P-15T), 2 x 2 - 30/71 AK-230 |
|
Sensors |
MR-101 Rangout, MR-104 Rys' radars |
|
Complement |
28 |
Project history: Soviet project 205 craft.
Modernizations: 1990, Szczecin, Elbląg: - 4 x 1 P-15/P-15T SSM
Naval service: No significant events.

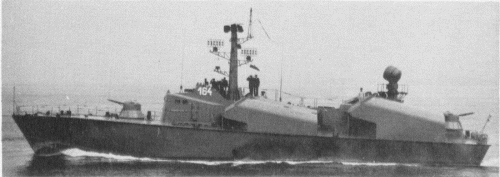

Kołobrzeg 1969
