POLISH NAVY (POLAND)

COASTAL FORCES

GÓRNIK small missile ships (project 1241RE) (1983 - 1989)

Metalowiec 2000

Name No Yard No Builder Laid down Launched Comp Fate
Górnik (ex-R-624) 434 01711 Vympel, Rybinsk, USSR     1983 // 28.12.1983 stricken 5.2005
Hutnik (ex-R-62) 435 01712 Vympel, Rybinsk, USSR     1983 // 31.3.1984 stricken 5.2005
Metalowiec (ex-R-542) 436 01720 Vympel, Rybinsk, USSR     1987 // 13.2.1988 stricken 12.2013
Rolnik (ex-R-833) 437 01722 Vympel, Rybinsk, USSR     1988 // 4.2.1989 stricken 12.2013





Displacement standard, t

385

Displacement full, t

455

Length, m

49.5 pp 56.1 oa

Breadth, m

10.2

Draught, m

2.20 hull 3.59 propellers

No of shafts

2

Machinery

2 M-15E gas turbine units (each consist of M-75 cruising gas turbine and M-70 boost gas turbine)

Power, h. p.

10000 + 24000 = 34000

Max speed, kts

43

Fuel, t

diesel oil 50

Endurance, nm(kts)

2200(14)

Armament

2 x 2 P-20M Termit SSM (4 P-20M), 1 x 4 Strela-2M SAM (16 9M32M), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M

Sensors

434, 435: Garpun-E, MR-123 Vympel-A, Kivach-2 radars, 2x PK-16 decoy RL

436, 437: Garpun-E, MR-123 Vympel-A, Pechora-1 radars, 2x PK-16 decoy RL

Complement

37

Project history: Soviet project 1241RE export version of project 1241T/12411.

Modernizations: None.

Naval service: No significant events.

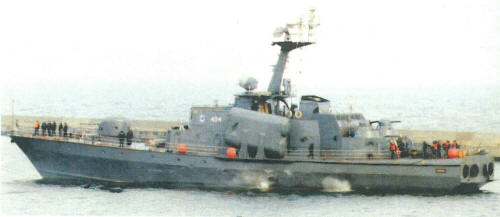

Górnik 2002

Many thanks to Wolfgang Stöhr for additional information on this page.
