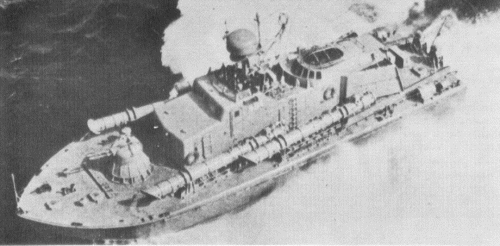

Bitny 1980
Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
Bitny | 452 | Stocnia Północną, Gdansk | 15.8.1968 | 15.9.1969 | 20.1.1972 | stricken 1.1986 | |
Bystry | 453 | Stocnia Północną, Gdansk | 20.2.1969 | 29.3.1970 | 20.1.1972 | stricken 12.1983 | |
Dzielny | 454 | Stocnia Północną, Gdansk | 15.12.1969 | 20.10.1970 | 22.7.1972 | stricken 12.1981 | |
Dziarski | 455 | Stocnia Północną, Gdansk | 16.6.1970 | 30.11.1971 | 20.10.1972 | stricken 12.1984 | |
Sprawny | 456 | Stocnia Północną, Gdansk | 23.11.1970 | 29.5.1972 | 13.1.1973 | stricken 11.1986 | |
Szybki | 457 | Stocnia Północną, Gdansk | 16.12.1971 | 29.9.1972 | 28.4.1973 | stricken 8.1984 | |
Odważny | 458 | Stocnia Północną, Gdansk | 7.4.1972 | 21.2.1973 | 15.9.1973 | stricken 1.1986 | |
Odporny | 459 | Stocnia Północną, Gdansk | 8.8.1972 | 31.5.1973 | 17.11.1973 | stricken 11.1986 |
Displacement standard, t |
94 |
Displacement full, t |
128 |
Length, m |
24.3 |
Breadth, m |
7.80 |
Draught, m |
1.50 |
No of shafts |
4 |
Machinery |
1 TM-1 gas turbine + 4 M-50FA diesels |
Power, h. p. |
7200 + 4800 = 12000 |
Max speed, kts |
59 |
Fuel, t |
diesel oil |
Endurance, nm(kts) |
1000(30) |
Armament |
1 x 2 - 30/71 AK-230, 4 - 533 TT, 4 DC |
Sensors |
Reya radar |
Complement |
11 |
Project history: Project 664. Very compact and highly-automated. Aluminium alloy welded hull and deckhouses. Hampered by vibration and excessive material fatigue caused by dynamic loads accumulated in fwd part of the hull.
Modernizations: None.
Naval service: No significant events.
1975
