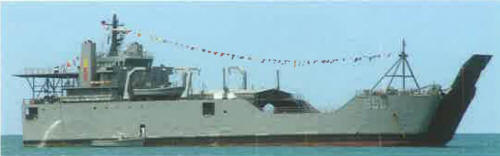

Bacolod City 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Bacolod City | LC550, 2016- LS550 | Halter, Escatawpa, USA | 3.12.1993 | in service (2019) | |||
| Dagupan City (ex-Cagayan de Oro) | LC551, 2016- LS551 | Halter, Escatawpa, USA | 5.4.1994 | in service (2019) |
|
Displacement standard, t |
1650 |
|
Displacement full, t |
4266 |
|
Length, m |
78.0 pp 83.1 oa |
|
Breadth, m |
18.2 wl 18.3 oa |
|
Draught, m |
3.66 max |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 16-645E2 diesels |
|
Power, h. p. |
3900 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil 524 |
| Endurance, nm(kts) | 6500(11) |
|
Armament |
2 x 1 - 20/70 Mk 10, 3 x 1 - 12.7/90, helicopter deck |
| Military load |
2 LCVP, 1815 t of vehicles or cargo, 150 troops |
| Electronic equipment | SPS-64(v)2 radar |
| Complement | 30 |
Project history: Ordered to US Frank S Besson class design produced for the US Army. Typical ro-ro design, can transport 1815t of vehicles or cargo on the 975m² cargo deck, beaching load is 900t. Can also carry 122t of potable water. Have a bow ramp with 8.23m width.
Modernizations: None.
Naval service: No significant events.
Bacolod City 2011
