Batangas 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Camarines Sur (ex-PC1121) | C21 | Defoe, Bay City, USA | 6.1942 | 27.8.1942 | 12.1942 // 1947 | stricken 1953 | |
| Bohol (ex-PC1131) | C22, 1965- PS22 | Defoe, Bay City, USA | 10.1942 | 17.12.1942 | 7.1943 // 1947 | scrapped 1969 | |
| Zamboanga del Sur (ex-PC1133) | C23 | Defoe, Bay City, USA | 11.1942 | 9.1.1943 | 8.1943 // 1948 | stricken 10.1956 | |
| Batangas (ex-PC1134) | C24, 1965- PS24 | Defoe, Bay City, USA | 12.1942 | 18.1.1943 | 9.1943 // 7.1948 | stricken 1979 | |
| Nueva Esija (ex-PC1241) | C25, 1965- PS25 | Nashville Bridge, USA | 9.1942 | 24.12.1942 | 5.1943 // 10.1948 | stricken 1977 | |
| Negros Oriental (ex-PC1563) | C26 | Leatham D. Smith SB, Sturgeon Bay, USA | 2.1944 | 24.3.1944 | 6.1944 // 5.1945 | lost 11.11.1962 | |
| Capiz (ex-PC1564) | C27, 1965- PS27 | Leatham D. Smith SB, Sturgeon Bay, USA | 2.1944 | 19.4.1944 | 8.1944 // 7.1947 | stricken 1979 | |
| Negros Oriental (ex-L`Inconstant, ex-PC1171) | PS29 | Leatham D. Smith SB, Sturgeon Bay, USA | 3.1943 | 15.5.1943 | 9.1943 // 12.1976 | stricken 1989 | |
| Nueva Viscaya (ex-Altus, ex-PC568) | PS80 | Brown, Houston, USA | 9.1941 | 25.4.1942 | 7.1942 // 3.1968 | lost 13.11.1989 |
|
Displacement standard, t |
414 |
|
Displacement full, t |
463 |
|
Length, m |
51.8 wl 52.9 oa |
|
Breadth, m |
7.06 |
|
Draught, m |
3.30 full load |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2880 |
|
Max speed, kts |
19 |
|
Fuel, t |
diesel oil 49 |
| Endurance, nm(kts) | 3000 (12) |
|
Armament |
1 x 1 - 76/50 Mk 26, 1 x 1 - 40/60 Mk 3, 5 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR |
|
Electronic equipment |
SF or SO or SU radar, QHA sonar PS29: SPN-18 radar, SQS-17B sonar PS80: SPN-18, Decca 202 radars, SQS-17B sonar |
| Complement | 65 |
Project history: Former USN patrol PC1573 of 173ft type
was transferred the first in 1945 after service
under US flag.
In 1947-1968 Philippines received seven more ships of PC type from USA, and also
one more sister ship of former Cambodian fleet which have left from "red khmers"
in 1975 and was commissioned in 1976.
Modernizations: 1970s, all survived: new sensors consisted of SPN-18 radar, SQS-17B sonar
Naval service: Negros Oriental foundered off Guam 11.11.1962 during typhoon "Karen". She was raised and broken up in June, 1963. Nueva Viscaya was lost 13.11.1989 during typhoon at Cebu.

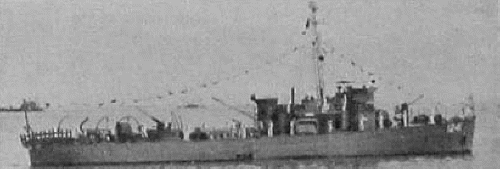

Nueva Ecija 1953

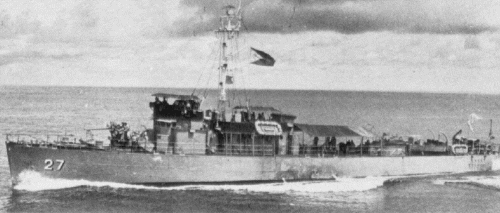

Capiz 1970s
