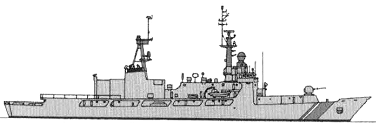

Gregorio del Pilar 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Gregorio del Pilar (ex-Hamilton) | FF15 | Avondale SY, Westwego, USA | 23.11.1965 | 18.12.1965 | 20.2.1967 // 13.5.2011 | in service (2019) | |
| Ramon Alcazar (ex-Dallas) | FF16 | Avondale SY, Westwego, USA | 7.2.1966 | 1.10.1966 | 1.10.1967 // 22.5.2012 | in service (2019) | |
| Andrés Bonifacio (ex-Boutwell) | FF17 | Avondale SY, Westwego, USA | 12.12.1966 | 17.6.1967 | 14.6.1968 // 22.7.2016 | in service (2019) |
|
Displacement standard, t |
2716 |
|
Displacement full, t |
3050 |
|
Length, m |
106.7 wl 115.4 oa |
|
Breadth, m |
13.1 |
|
Draught, m |
6.20 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Pratt & Whitney FT4A6 gas turbines / 2 Fairbank Morse 38TD81/8 diesels |
|
Power, h. p. |
36000 / 7000 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil 800 |
|
Endurance, nm(kts) |
14000(11) |
|
Armament |
FF15, 17: 1 x 1 - 76/62 Mk 75, 4 x 1 - 12.7/90, 1 helicopter (BO-105 or AW-109) FF16: 1 x 1 - 76/62 Mk 75, 2 x 1 - 25/87 Mk 38 Bushmaster, 4 x 1 - 12.7/90, 1 helicopter (BO-105 or AW-109) |
|
Electronic equipment |
SPS-73, SPS-64(v)6, Mk 92 radars, WLR-1H(v)5, WLR-3 ECM suites, 2x SRBOC Mk 36 decoy RL, SCCS CCS |
|
Complement |
90 |
Project history: USCG Hamilton class cutters, transferred without SPS-40B radar, Phalanx and ASW equipment.
Modernizations: None.
Naval service: Gregorio del Pilar ran aground 29.8.2018 at Hasa Hasa Shoal off Palawan, salvaged 3.9.2018 and towed for repair.

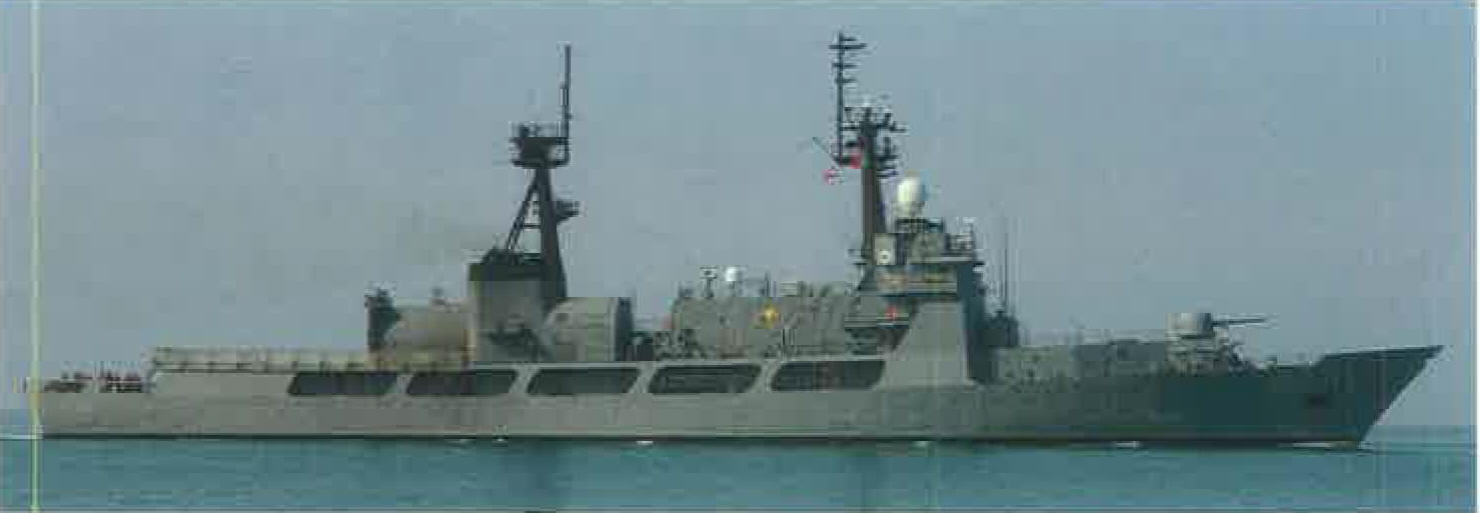

Ramon Alcazar 2014
