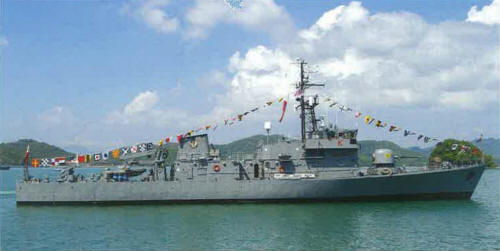

Emilio Jacinto 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Emilio Jacinto (ex-Peacock) | PS35 | 988 | Hall Russell, Aberdeen, UK | 29.1.1982 | 1.12.1982 | 12.10.1983 // 1.8.1997 | in service (2019) |
| Apolinario Mabini (ex-Plover) | PS36 | 989 | Hall Russell, Aberdeen, UK | 13.5.1982 | 12.4.1983 | 20.7.1984 // 1.8.1997 | in service (2019) |
| Artemio Ricarte (ex-Starling) | PS37 | 990 | Hall Russell, Aberdeen, UK | 9.9.1982 | 7.9.1983 | 10.8.1984 // 1.8.1997 | in service (2019) |
|
Displacement standard, t |
662 |
|
Displacement full, t |
712 |
|
Length, m |
60.0 pp 62.6 oa |
|
Breadth, m |
10.0 |
|
Draught, m |
2.72 |
|
No of shafts |
2 |
|
Machinery |
2 APE-Crossley-SEMT-Pielstick 18PA6 V280 diesels |
|
Power, h. p. |
14188 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil 44 |
|
Endurance, nm(kts) |
2500(17) |
|
Armament |
1 x 1 - 76/62 OTO Melara Compact, 4 x 1 - 7.6/90, 2 x 1 - 50 flare rocket launchers |
|
Electronic equipment |
type 1006 radar, GSA.7 Sea Archer E/O director |
|
Complement |
31 |
Project history: Former RN Peacock class patrols built for service in Hong Kong waters.
Modernizations: 2005-2006, all: - 4 x 1 - 7.6/90, 2 x 1 - 50 flare rocket launchers, type 1006 radar, GSA.7 Sea Archer e/o system; + 1 x 1 - 25/75 DS-25, 2 x 1 - 12.7/90, Sperry Bridgemaster radar, Radamec 1500 e/o system
Naval service: No significant events.
Emilio Jacinto 2011
Many thanks to Wolfgang Stöhr for additional information on this page.
