Names |
H72 Camiguin, 1965- HB77 Camiguin H73 Siquijer, 1965- HB76 Siquijer |
|
Builders |
CN Rodriguez, Messina, Italy: H72, 73 |
|
Completed |
4/1965: H72, 73 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1979: HB76, 77 |
|
Displacement standard, t |
28 |
|
Displacement full, t |
36 |
|
Length, m |
20.7 |
|
Breadth, m |
4.67 deck 7.35 foils |
|
Draught, m |
2.71 hull 1.16 on foils |
|
No of shafts |
2 |
|
Machinery |
2 Mercedes Benz diesels |
|
Power, h. p. |
1250 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 400 |
|
Armament |
1 x 1 - 20/70 Mk 10 |
| Electronic equipment | |
|
Complement |
15 |
Project history: Hydrofoils for naval and police patrol duties.
Modernizations: None.
Naval service: No significant events.
1965

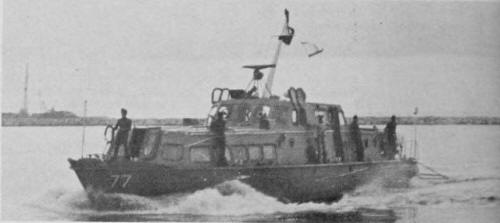

Camiguin
