PHILIPPINE NAVY (PHILIPPINES)

COAST GUARD

SAN JUAN SAR patrol ships (2000-2003)

San Juan 2010

Name No Yard No Builder Laid down Launched Comm Fate
San Juan 001   Tenix, Henderson, Australia     19.6.2000 in service (2019)
EDSA II 002   Tenix, Henderson, Australia   4.10.2000 14.12.2000 in service (2019)
Pampanga 003   Tenix, Henderson, Australia     30.1.2003 in service (2019)
Batangas 004   Tenix, Henderson, Australia     8.8.2003 in service (2019)



Displacement standard, t

500

Displacement full, t

540

Length, m

51.0 wl 56.0 oa

Breadth, m

10.6

Draught, m

2.50 max

No of shafts

2

Machinery

2 Caterpillar 3612 diesels

Power, h. p.

4800

Max speed, kts

24.5

Fuel, t

diesel oil 88

Endurance, nm(kts)

2000(15)

Armament

helicopter deck

Electronic equipment

2x Furuno radars

Complement

38 + 300 survivors



Project history: Built with Australian financial assistance. Have a medical facilities. Helicopter deck can accept S-76 or UH-1H helicopter (Coast Guard has only two BO-105 helicopter as on 2018). Carry a 6.5m rescue RIB on the stern ramp and 4 4.5m RIBs handled by cranes. May be fitted with 12.7mm MG.

Modernizations: None.

Naval service: No significant events.

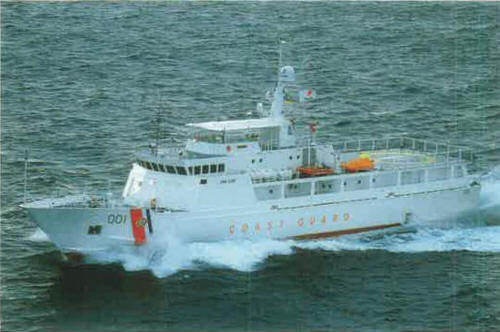

San Juan 2000
