| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Bessang Pass | 99, 1998- 75 | Sumidagawa, Tokyo, Japan | 1976 | in service (2019) | |||

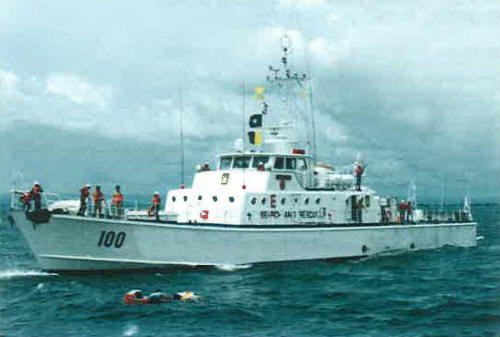

| Tirad Pass | 100 | Sumidagawa, Tokyo, Japan | 1977 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
275 |
|
Length, m |
44.0 |
|
Breadth, m |
7.40 |
|
Draught, m |
1.50 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V538 TB82 diesels |
|
Power, h. p. |
4030 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2300(14) |
|
Armament |
2 x 2 - 12.7/90 |
|
Electronic equipment |
radar |
|
Complement |
32 |
Project history: SAR craft.
Modernizations: None.
Naval service: Bessang Pass ran aground and was lost in September 1983, but later salvaged, refitted and returned to service in August 1998.
Tirad Pass 1992
