PCF325 coastal patrol craft (1975-1976)

Names	PC325 - 332, 334, 347, 1996- DF325 - 332, 334, 347 PCF351 - 354, 1996- PB351-354
Builders	Peterson, Sturgeon Bay, USA: PCF325-332, 334, 347, 351-354
Completed	1975-1976: PCF325-332, 334, 347, 351-354
Losses	none
Transfers	none
Discarding	2017-18: DF325-329, 331, 332, 334, 347, PB353 in service (2019): DF330, PB351, 352, 354

Displacement standard, t
28

Displacement full, t
37

Length, m
19.8

Breadth, m
5.50

Draught, m
1.80

No of shafts
3

Machinery

3 General Motors 8V71 TI diesels

Power, h. p.

1950

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts) 500(30)

Armament

(4 x 1 - 20/70 Mk 10, 1 x 2 - 12.7/90) or 4 x 1 - 12.7/90 or (1 x 2 - 12.7/90, 2 x 1 - 12.7/90)

Electronic equipment LN-66 or Koden radar

Complement
8

Project history: US Swift Mk III class. Aluminium construction.

Modernizations: None.

Naval service: Mostly all boats were transferred to Coast Guard in 1996.

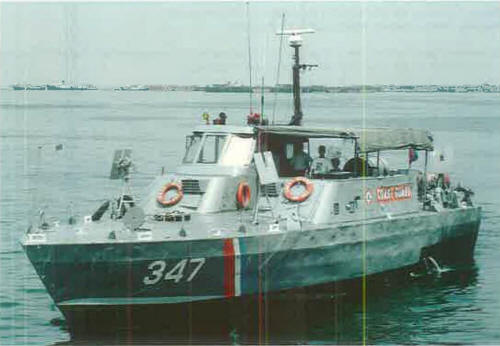

DF347 1998

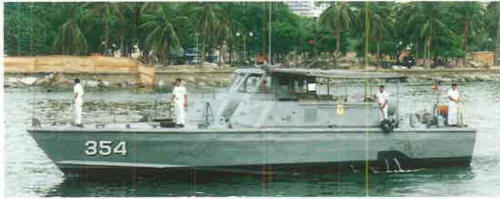

PCF354 1998

PHILIPPINE NAVY (PHILIPPINES)

COASTAL FORCES

PCF325 coastal patrol craft (1975-1976)

Displacement standard, t	28
Displacement full, t	37
Length, m	19.8
Breadth, m	5.50
Draught, m	1.80
No of shafts	3
Machinery	3 General Motors 8V71 TI diesels
Power, h. p.	1950
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)	500(30)
Armament	(4 x 1 - 20/70 Mk 10, 1 x 2 - 12.7/90) or 4 x 1 - 12.7/90 or (1 x 2 - 12.7/90, 2 x 1 - 12.7/90)
Electronic equipment	LN-66 or Koden radar
Complement	8
