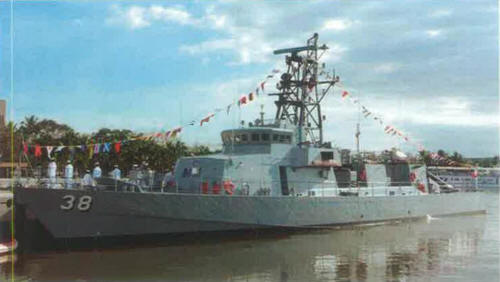

General Mariano Alvarez 2005
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| General Mariano Alvarez (ex-Cyclone) | PS38 | Bollinger Machine Shop & SY, Lockport, USA | 22.6.1991 | 1.2.1992 | 7.8.1993 // 6.3.2003 | in service (2019) |
|
Displacement standard, t |
352 |
|
Displacement full, t |
387 |
|
Length, m |
48.0 wl 54.4 oa |
|
Breadth, m |
7.62 |
|
Draught, m |
2.44 |
|
No of shafts |
4 |
|
Machinery |
4 Paxman Valenta 16V RP-200 CM diesels |
|
Power, h. p. |
13400 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil 40 |
|
Endurance, nm(kts) |
2500(12) |
|
Armament |
2 x 1 - 25/75 Mk 38 Mod. 2, 4 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Rascar 3400C X-band and S-band radars, Wesmar sonar, APR-39(V)1 ECM suite, 2 Ultrabarricade Mk 32 decoy RLs, FLIR KAX-1, Vistar e/o systems, Vision 2100M CCS |
|
Complement |
30 + 9 SEALs |
Project history: Former USN/USCG Cyclone craft. Carries 9.4m RIB on the stern ramp.
Modernizations: None.
Naval service: No significant events.
General Mariano Alvarez 2004
