Arica 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Islay | 35 | Howaldtswerke, Kiel, West Germany | 15.5.1971 | 11.10.1973 | 23.8.1974 | in service (2019) | |
| Arica | 36 | Howaldtswerke, Kiel, West Germany | 1.11.1971 | 5.4.1974 | 21.1.1975 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
980 / 1230 |
|
Length, m |
54.4 |
|
Breadth, m |
6.20 |
|
Draught, m |
5.50 |
|
No of shafts |
1 |
|
Machinery |
4 MTU 12V493 AZ80 GA31L diesel-generators, 1 Siemens electric motor |
|
Power, h. p. |
2440 / 4600 |
|
Max speed, kts |
11 / 21 |
|
Fuel, t |
diesel oil 63 |
| Endurance, nm(kts) | 11300(4) / 400(4) |
|
Armament |
8 - 533 TT (bow, 14 SST-4) |
|
Electronic equipment |
Calypso radar, CSU-3Z sonar suite, DUUX-2CN sonar, ECM suite |
|
Complement |
35 |
|
Diving depth operational, m |
250 |
Project history: German Type 209/1200.
Modernizations: 1986-1988, both: + Sepa Mk 3 CCS
2007-2008, both: - CSU-3Z sonar suite, DUUX-2CN sonar; + CSU-83 sonar suite, PRS-3/15 sonar, also SUT-264 torpedoes can be used
Naval service: No significant events.

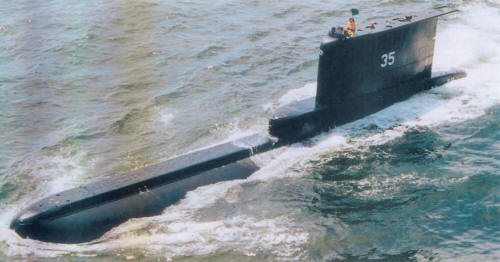

Islay 2004
