PERUVIAN NAVY (PERU)

MINE WARFARE SHIPS

BONDY coastal minesweepers (1942/1947)

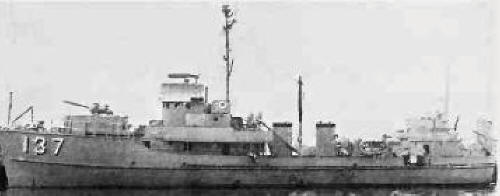

Bondy 1955

Name No Yard No Builder Laid down Launched Comp Fate
Bondy (ex-YMS25) 137   Greenport Basin, USA 11.1941 28.1.1942 6.1942 // 7.1947 stricken 1974
San Martín (ex-YMS35) 138   Hiltebrant, Kingston, USA 5.1941 7.11.1941 7.1942 // 7.1947 stricken 1974



Displacement standard, t

300

Displacement full, t

320

Length, m

39.6 wl 41.5 oa

Breadth, m

7.47

Draught, m

2.36 full load

No of shafts

2

Machinery

2 General Motors diesels

Power, h. p.

1000

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)

2100 (9.5)

Armament

1 x 1 - 76/50 Mk 21, 2 x 1 - 20/70 Mk 10, 2 DCT, 2 DCR, mechanical, magnetic, acoustic minesweeping gear

Electronic equipment

SO or SU radar

Complement

30

Project history: Former USN YMS class inshore minesweepers.

Modernizations: None.

Naval service: No significant events.

Bondy 1966
