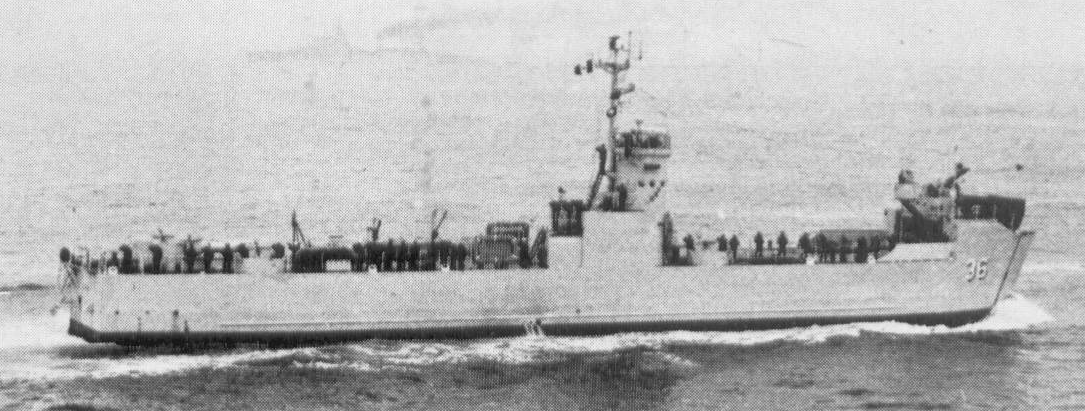

Lomas 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Lomas (ex-LSM396) | 36, 1977- 145 | Charleston N Yd, USA | 12/1944 | 2.1.1945 | 3.1945 // 7.1959 | deleted 1986 | |
| Atico (ex-LSM554) | 37, 1977- 146 | Charleston N Yd, USA | 3/1945 | 22.3.1945 | 9.1945 // 7.1959 | deleted 1986 |
|
Displacement standard, t |
520 |
|
Displacement full, t |
1095 |
|
Length, m |
59.9 wl 62.0 oa |
|
Breadth, m |
10.5 |
|
Draught, m |
landing: 1.07 fore, 2.13 aft |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesels |
|
Power, h. p. |
2800 |
|
Max speed, kts |
12.5 - 13.2 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4900 (12) |
|
Armament |
1 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10 |
| Military load |
5 medium or 3 heavy tanks or 6 LVT or 9 DUKW, 48 - 54 marines |
| Electronic equipment | nav. radar |
| Complement | 60 |
Project history: Former USN LSM1 class medium landing ships.
Modernizations: None.
Naval service: No significant events.
Lomas 1975
