Velarde 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Velarde | 21 | DCN, Lorient, France | 16.9.1978 | 25.7.1980 | in service (2019) | ||
| Santillana | 22 | SFCN, Villeneuve-la-Garenne, France | 11.9.1978 | 25.7.1980 | in service (2019) | ||
| De Los Heros | 23 | DCN, Lorient, France | 20.5.1979 | 17.11.1980 | in service (2019) | ||
| Herrera | 24 | SFCN, Villeneuve-la-Garenne, France | 16.2.1979 | 26.2.1981 | in service (2019) | ||
| Larrea | 25 | DCN, Lorient, France | 12.5.1979 | 16.6.1981 | in service (2019) | ||
| Sánchez Carrión | 26 | SFCN, Villeneuve-la-Garenne, France | 28.6.1979 | 14.9.1981 | in service (2019) |
|
Displacement standard, t |
470 |
|
Displacement full, t |
610 |
|
Length, m |
59.0 pp 64.0 oa |
|
Breadth, m |
8.35 |
|
Draught, m |
2.60 max |
|
No of shafts |
4 |
|
Machinery |
4 SACM AGO240 V-16M7 diesels |
|
Power, h. p. |
22000 |
|
Max speed, kts |
37 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2500(16) |
|
Armament |
4 x 1 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca 1226, THD1040 Triton, Castor-II radars, Panda e/o system, DR-2000 ECM suite |
|
Complement |
36 |
Project history: PR72 design of SFCN.
Modernizations: 1997, all: + 1 x 4 MGP-86 SAM (4 9M39 Igla)
1999-2002, all: diesels were replaed by 4 MTU 12V595 (17400hp, 34kts)
Naval service: No significant events.

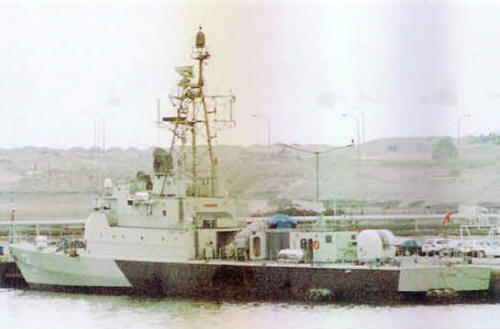

Velarde 2004
