Mariategui 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Carvajal, 12.2013- Guardiamarina San Martín | 51, 12.2013- 201 | CNR, Riva Trigoso, Italy | 8.10.1974 | 13.11.1976 | 23.12.1978 | Coast Guard 12.2013, in service (2019) | |
| Villavicencio | 52 | CNR, Riva Trigoso, Italy | 6.10.1976 | 7.2.1978 | 25.6.1979 | in service (2019) | |
| Montero, 9.2017- Almirante Grau | 53 | SIMA, Callao | 10.1978 | 8.10.1982 | 25.7.1984 | in service (2019) | |
| Mariategui | 54 | SIMA, Callao | 1979 | 8.10.1984 | 28.12.1987 | in service (2019) |
|
Displacement standard, t |
2208 |
|
Displacement full, t |
2500 |
|
Length, m |
106.00 pp 113.2 oa |
|
Breadth, m |
11.3 |
|
Draught, m |
3.66 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 General Electric-Fiat LM-2500 gas turbines / 2 GMT A230-20M diesels |
|
Power, h. p. |
50000 / 7800 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel / gas turbine oil |
| Endurance, nm(kts) | 3450(20.5) |
|
Armament |
8 x 1 Teseo SSM (8 Otomat Mk 2), 1 x 8 Albatros SAM (8 Aspide), 1 x 1 - 127/54 OTO-Melara Compact, 2 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT (A-244), 1 helicopter (AB-212) |
|
Electronic equipment |
3RM20, RAN-10S, RAN-11LX, 2x RTN-30X, 2x RTN-20X radars, EDO-610E sonar, Lambda ECM suite, 2x SCLAR decoy RL, IPN-10 CCS |
|
Complement |
193 |
Project history: Units differ considerably from the standard Lupo design. They have two masts, a standard, not a telescopic hangar, 40mm guns installed a deck higher and hand-powered reloading system for the Albatros SAM.
Modernizations: 1997, all: + 2 x 4 MGP-86 SAM (8 9M39 Igla)
1997-1998, Carvajal, Mariategui: helicopter deck was extended to the stern; - 1 helicopter (AB-212); + 1 helicopter (ASH-3D Sea King)
2004, Carvajal: - RAN-10S radar; + LW-08 radar
2013, Guardiamarina San Martín: - 8 x 1 Teseo SSM, 1 x 8 Albatros SAM, 2 x 3 - 324 TT, LW-08, 2x RTN-30X, 1x RTN-20X radars, EDO-610E sonar, 2x SCLAR decoy RL
Naval service: No significant events.

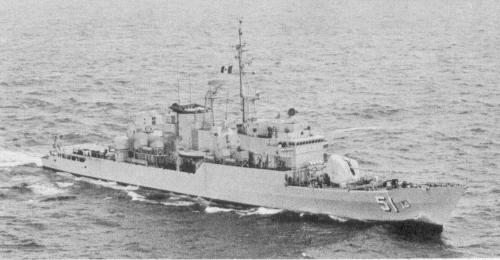

Carvajal 1979

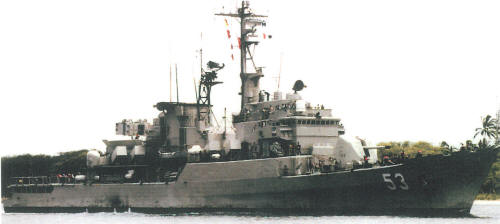

Montero 2002

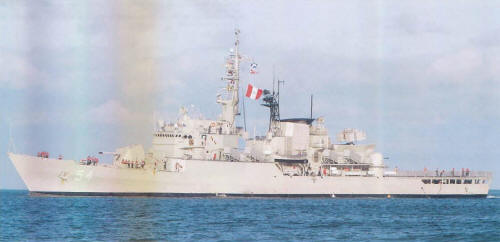

Mariategui 2008
