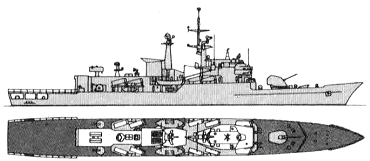

Aguirre 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Aguirre (ex-Orsa) | 55 | CNR, Muggiano, Italy | 1.8.1977 | 1.3.1979 | 1.3.1980 // 3.11.2004 | in service (2019) | |
| Palacios (ex-Lupo) | 56 | CNR, Riva Trigoso, Italy | 8.10.1974 | 29.7.1976 | 20.9.1977 // 3.11.2004 | in service (2019) | |
| Bolognesi (ex-Ferré, ex-Perseo) | 57 | CNR, Riva Trigoso, Italy | 28.2.1977 | 8.7.1978 | 1.3.1980 // 23.1.2006 | in service (2019) | |
| Quiñones (ex-Almirante Grau, ex-Sagittario) | 58 | CNR, Riva Trigoso, Italy | 4.2.1976 | 22.6.1977 | 18.11.1978 // 23.1.2006 | in service (2019) |
|
Displacement standard, t |
2208 |
|
Displacement full, t |
2525 |
|
Length, m |
106.0 pp 113.6 oa |
|
Breadth, m |
12.0 |
|
Draught, m |
4.00 hull 5.70 max |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 General Electric-Fiat LM-2500 gas turbines / 2 GMT NSD A230-20M diesels |
|
Power, h. p. |
50000 / 9900 |
|
Max speed, kts |
35.2 |
|
Fuel, t |
diesel / gas turbine oil |
| Endurance, nm(kts) | 4350(16) |
|
Armament |
8 x 1 Teseo Mk 2 SSM (8 Otomat Mk 2), 1 x 8 Sea Sparrow SAM (8 Aspide), 1 x 1 - 127/54 OTO-Melara Compact, 2 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 3 - 324 Mk 32 Mod. 9 TT, 1 helicopter (AB-212ASW) |
|
Electronic equipment |
SPN-748, SPQ-2F, SPS-774, Mk 95, SPG-70, 2x SPG-74 radars, DE-1160B sonar, SLR-4 Newton, 2x SLQ-D ECM suites, 2x SCLAR decoy RL, SLQ-25 Nixie torpedo decoy, SADOC-2 (IPN-20) CCS |
|
Complement |
184 |
Project history: Former Italian Lupo class frigates. Aguirre was commissioned 6.5.2005, Palacios 28.6.2005, Bolognesi 18.7.2006, Quiñones 22.1.2007.
Modernizations: 2014, Bolognesi; 2015, Aguirre: - 8 x 1 Teseo Mk 2 SSM, SPS-774 radar, SADOC-2 (IPN-20) CCS; + 2 x 4 MM40 Exocet SSM (8 MM40), Kronos NV radar, SMTI-II ECM suite, 2x MASS decoy RL, Varayoc CCS
Naval service: No significant events.

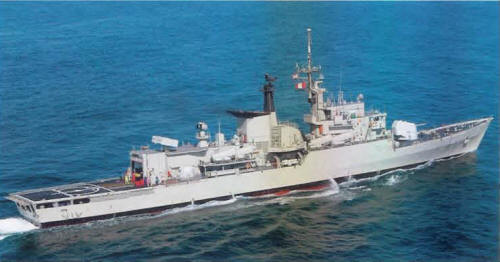

Palacios 2006
