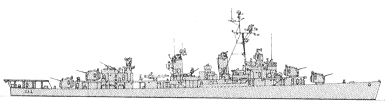

Guise 1963

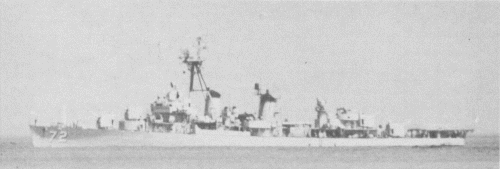

Guise 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Villar (ex-Isherwood) | 71 | Bethlehem, Staten I, Port Richmond, USA | 5.1942 | 24.10.1942 | 4/1943 // 8.10.1961 | discarded 1980 | |
| Almirante Guise (ex-Benham) | 72 | Bethlehem, Staten I, Port Richmond, USA | 4.1943 | 30.8.1943 | 12/1943 // 15.12.1960 | discarded 1981 |
|
Displacement standard, t |
2276 |
|
Displacement full, t |
3005 |
|
Length, m |
112.5 wl 114.7 oa |
|
Breadth, m |
12.1 |
|
Draught, m |
4.19 full load |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
38 |
|
Fuel, t |
oil 492 |
| Endurance, nm(kts) | 6500 (15) |
|
Armament |
4 x 1 - 127/38 Mk 30, 3 x 2 - 76/50 Mk 33, 1 x 5 - 533 TT, 2 - 533 TC, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 DCR |
|
Electronic equipment |
SPS-6, SPS-10, Mk 25, Mk 34 radars, SQS-4 sonar |
|
Complement |
273 |
Project history: Former USN Fletcher class destroyers.
Modernizations: 1975-1976, both: + helicopter deck
Naval service: No significant events.
Guise 1976
