García y García 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| García y García (ex-Holland) | 75 | 266 | Rotterdamse Droogdok Mij, Rotterdam, Netherlands | 21.4.1950 | 11.4.1953 | 31.12.1954 // 2.1.1978 | deleted 1986 |
|
Displacement standard, t |
2215 |
|
Displacement full, t |
2765 |
|
Length, m |
109.9 pp 113.1 oa |
|
Breadth, m |
11.4 |
|
Draught, m |
5.10 |
|
No of shafts |
2 |
|
Machinery |
2 sets Werkspoor-Parsons geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
45000 |
|
Max speed, kts |
32 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 4000(18) |
|
Armament |
2 x 2 - 120/50 Bofors No.10, 1 x 1 - 40/70 Bofors SP48, 2 x 4 - 375 Bofors ASWRL, 2 DCR |
|
Electronic equipment |
DA-02, LW-03, ZW-01, M45 radars, type 170B, type 162 sonars |
|
Complement |
247 |
Project history: Former Dutch Holland class destroyer.
Modernizations: None.
Naval service: No significant events.

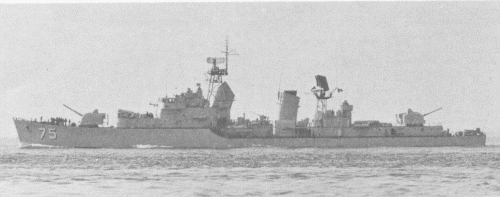

García y García 1978
Many thanks to Wolfgang Stöhr for additional information on this page.
