Villar 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Colonel Bolognesi (ex-Overijssel) | 70 | 729 | Wilton-Fijenoord, Schiedam, Netherlands | 15.10.1953 | 8.8.1955 | 4.10.1957 // 14.6.1982 | stricken 1990 |
| Castilla (ex-Utrecht) | 71 | 272 | KM De Schelde, Vlissingen, Netherlands | 15.2.1954 | 2.6.1956 | 1.10.1957 // 6.10.1980 | stricken 1990 |
| Guise (ex-Drenthe) | 72 | 436 | Nederlandse Dok- en Scheepsbouw Mij, Amsterdam, Netherlands | 9.1.1954 | 26.3.1955 | 1.8.1957 // 11.7.1981 | stricken 8.1985 |
| Capitán Quiñones (ex-Limburg) | 76 | 271 | KM De Schelde, Vlissingen, Netherlands | 28.11.1953 | 5.9.1955 | 31.10.1956 // 27.6.1980 | stricken 1992 |
| Villar (ex-Amsterdam) | 77 | 437 | Nederlandse Dok- en Scheepsbouw Mij, Amsterdam, Netherlands | 26.3.1955 | 25.8.1956 | 10.4.1958 // 19.5.1980 | stricken 1991 |
| Gálvez (ex-Groningen) | 78 | 429 | Nederlandse Dok- en Scheepsbouw Mij, Amsterdam, Netherlands | 21.2.1952 | 9.1.1954 | 12.9.1956 // 2.2.1981 | stricken 1991 |
| Diez Canseco (ex-Rotterdam) | 79 | 277 | Rotterdamse Droogdok Mij, Netherlands | 7.1.1954 | 26.1.1956 | 28.2.1957 // 11.7.1981 | stricken 1991 |
|
Displacement standard, t |
2497 |
|
Displacement full, t |
3070 |
|
Length, m |
112.8 pp 116.0 oa |
|
Breadth, m |
11.7 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
2 sets Werkspoor geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
36 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 4000(18) |
|
Armament |
2 x 2 - 120/50 Bofors No.10, 4 x 1 - 40/70 Bofors SP48, 2 x 4 - 375 Bofors ASWRL, 2 DCR |
|
Electronic equipment |
Decca 1229, LW-03, DA-05, ZW-06, M45 radars, CWE-10N, PAE-1N sonars |
|
Complement |
284 |
Project history: Former Dutch Friesland class destroyers.
Modernizations:
Naval service: No significant events.

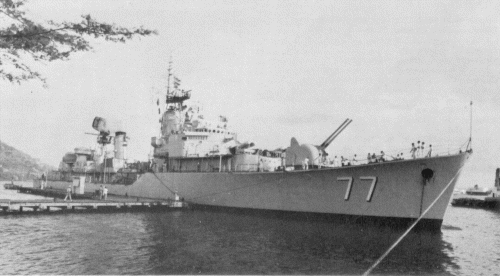

Villar 1980
Many thanks to Wolfgang Stöhr for additional information on this page.
