Names |
213 Parachique 214 San Andrés 222 Zorritos, later- Cancas 224 Punta Arenas 225 Santa Rosa 226 Pacasmayo 227 Barranca 228 Coishco 229 Independencia 230 San Nicolás 234 Matarani 238 Sama 239 Atico 240 Malabrigo 241 Catarindo 242 Punta Pariñas 248 Casma 249 Tortugas 293 Juli 294 Mojo |
|
Builders |
SIMA, Callao: 213, 214, 222, 224-230, 234, 238-242, 248, 249, 293, 294 |
|
Commissioned |
2003: 222, 224-227 2004: 228-230, 234, 238 2012-2013: 213, 214, 239-242, 248, 249, 293, 294 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): 213, 214, 222, 224-230, 234, 238-242, 248, 249, 293, 294 |
|
Displacement standard, t |
|
|
Displacement full, t |
12 |
|
Length, m |
12.0 |
|
Breadth, m |
4.20 |
|
Draught, m |
0.70 |
|
No of shafts |
2 |
|
Machinery |
222, 224-230, 234, 238, 293, 294: 2 Caterpillar 275 diesels 213, 214, 239-242, 248, 249: 2 diesels |
|
Power, h. p. |
222, 224-230, 234, 238, 293, 294: 550 213, 214, 239-242, 248, 249: 740 |
|
Max speed, kts |
222, 224-230, 234, 238, 293, 294: 25 213, 214, 239-242, 248, 249: 28 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
Furuno radar |
|
Complement |
5 |
Project history: Modified Dauntless design.
Modernizations: None.
Naval service: No significant events.

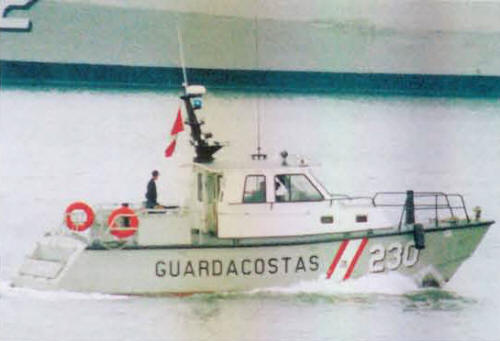

San Nicolás 2004
© Ivan Gogin, 2018-19
