PERUVIAN COAST GUARD (PERU)

COAST GUARD SHIPS

RÍO PATIVILCA patrol ships (2016-)

Name No Yard No Builder Laid down Launched Comp Fate
Río Pativilca 204   SIMA, Chimbote   11.1.2016 2016 in service (2019)
Río Cañete 205   SIMA, Chimbote     2016 in service (2019)
Río Piura 206   SIMA, Chimbote     2017 in service (2019)
Río Quilca 207   SIMA, Chimbote     2017 in service (2019)
  208   SIMA, Chimbote     2018 building (2019)


Displacement standard, t

465

Displacement full, t

500

Length, m

54.5

Breadth, m

8.50

Draught, m

2.30

No of shafts

2

Machinery

2 Caterpillar 3516C HD diesels

Power, h. p.

6690

Max speed, kts

23

Fuel, t

diesel oil

Endurance, nm(kts) 3600(14)

Armament

1 x 1 - 30/80 Typhoon Bushmaster II Mk 44, 2 x 1 - 12.7/90

Electronic equipment

2x radars, Toplite e/o system

Complement

25

Project history: Design of South Korean STX Offshore SB. 2 fast inspection RIBs can be launched via stern ramp.

Modernizations: None.

Naval service: No significant events.

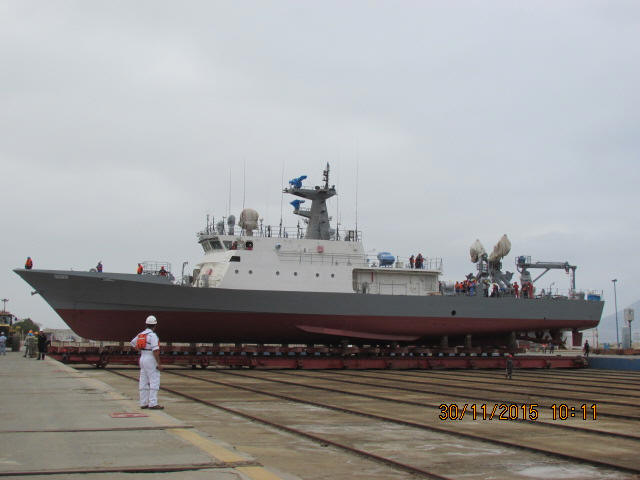

Río Pativilca 2015
