CS1 1945
|
Names |
CS1 (ex-CG83422) CS2 (ex-CG83496) CS3 (ex-CG83495) CS4 (ex-CG83423) CS5 (ex-CG83315) CS6 (ex-CG83338) |
|
Builders |
Wheeler, Brooklyn, USA: CS1 - 6 |
|
Commissioned |
1942 // 1944: CS5, 6 1943 // 1944: CS1 - 4 |
|
Losses |
none |
|
Transfers |
none |
| Discarding | 1958 - 1961: CS1 - 6 |
|
Displacement standard, t |
45 trials |
|
Displacement full, t |
|
|
Length, m |
25.3 |
|
Breadth, m |
4.88 |
|
Draught, m |
1.37 |
|
No of shafts |
2 |
|
Machinery |
2 petrol engines |
|
Power, h. p. |
1200 |
|
Max speed, kts |
20.5 |
|
Fuel, t |
petrol 7 |
| Endurance, nm(kts) |
375(12) |
|
Armament |
1 x 1 - 20/70 Mk 4, 4 DCR (14) |
|
Complement |
10 |
Project history: USCG 83ft-type motor launches, transferred to Peru, four in the March, 1944 and two in summer 1944.
Modernizations: None.
Naval service: No significant events.

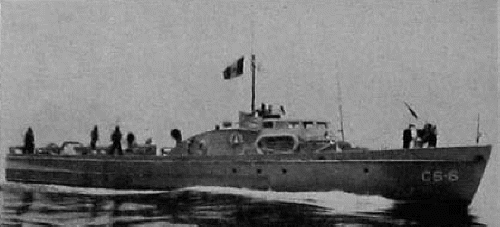

CS6 1951
