TARANGAU patrol boats (1987-1989)
Tarangau 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Tarangau, 2008- Rabaul | 01 | Tarnsfield ASI, South Coogie, Australia | 1987 | 16.5.1987 | in service (2020) | ||
| Dreger | 02 | Tarnsfield ASI, South Coogie, Australia | 12.1.1987 | 7.9.198 | 31.10.1987 | in service (2020) | |
| Seeadler | 03 | Tarnsfield ASI, South Coogie, Australia | 21.3.1988 | 4.9.1988 | 29.10.1988 | in service (2020) | |
| Basilisk, 2008- Moresby | 04 | Tarnsfield ASI, South Coogie, Australia | 19.10.1988 | 7.5.1989 | 1.7.1989 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
165 |
|
Length, m |
28.6 pp 31.5 oa |
|
Breadth, m |
8.10 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516TA diesels |
|
Power, h. p. |
2820 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil 28 |
| Endurance, nm(kts) | 2500(12) |
|
Armament |
1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Furuno radar |
|
Complement |
17 |
Project history: Australian ASI315 'Pacific Forum' design - boats, built for Pacific island countries by Australian government as an aid. Carry 5m aluminium boarding boat. Steel hull with aluminium superstructure.
Modernizations: None.
Naval service: No significant events.

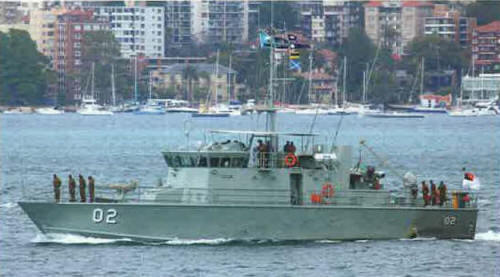

Dreger 2013
