| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| General Esteban Huertas (ex-YFU81) | A402 | Pacific Coast Engineering, Alameda, USA | 9/1968 // 2004 | in service (2019) |
|
Displacement standard, t |
220 |
|
Displacement full, t |
380 |
|
Length, m |
38.1 |
|
Breadth, m |
10.9 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 6-71 diesels |
|
Power, h. p. |
715 |
|
Max speed, kts |
8 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 7.6/90 |
| Military load | cargo |
|
Electronic equipment |
2x Raytheon R-96 radars |
|
Complement |
11 |
Project history: Former USN YFU71-class harbor utility craft. Bow ramp enables amphibious beaching.
Modernizations: None.
Naval service: No significant events.

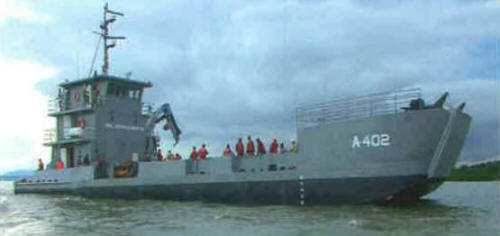

General Esteban Huertas 2013
