Names |
L15 Santa Clara (ex-MSB25) L16 Nombre de Dios (ex-MSB28) L17 Bastimentos (ex-MSB41) |
|
Builders |
Trumpy Yachts, Annapolis, USA: L15, 16 Simms Bros, Dorchester, USA: L17 |
|
Commissioned |
1954 // 1992: L15-17 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1996: L15 2003: L17 2014: L16 |
|
Displacement standard, t |
30 |
|
Displacement full, t |
44 |
|
Length, m |
17.5 |
|
Breadth, m |
4.83 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors Detroit Diesel 6-71 diesels |
|
Power, h. p. |
300 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 7.6/90 |
| Electronic equipment | Raytheon radar |
|
Complement |
6 |
Project history: Former USN MSB5-class minesweeping boats.
Modernizations: None.
Naval service: No significant events.

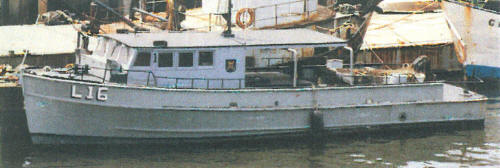

Nombre de Dios 2003
