| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Panquiaco | GC10, 1989- P301 | Vosper Thornycroft, Portchester, UK | 22.7.1970 | 7/1971 | in service (2019) | ||
| Ligia Elena | GC11, 1989- P302 | Vosper Thornycroft, Portchester, UK | 25.8.1970 | 7/1971 | in service (2019) |
|
Displacement standard, t |
96 |
|
Displacement full, t |
145 |
|
Length, m |
31.4 |
|
Breadth, m |
5.80 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman Ventura 12-YJCM diesels |
|
Power, h. p. |
2800 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(14) |
|
Armament |
2 x 1 - 20/70 Mk 4 |
|
Electronic equipment |
Decca 916 radar |
|
Complement |
23 |
Project history: Vosper 103ft type.
Modernizations: 1992, both: diesels were replaced by 2 General Motors Detroit Diesel 16V71TI (2500hp, 24kts); - 2 x 1 - 20/70, Decca 916 radar; + 2 x 1 - 7.6/90, 2x Raytheon R-81 radars
Naval service: Ligia Elena was sunk in December 1989 during US invasion but later recovered.

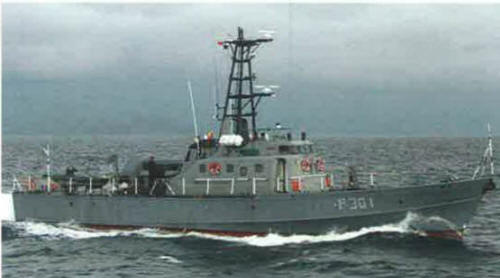

Panquiaco 2011
